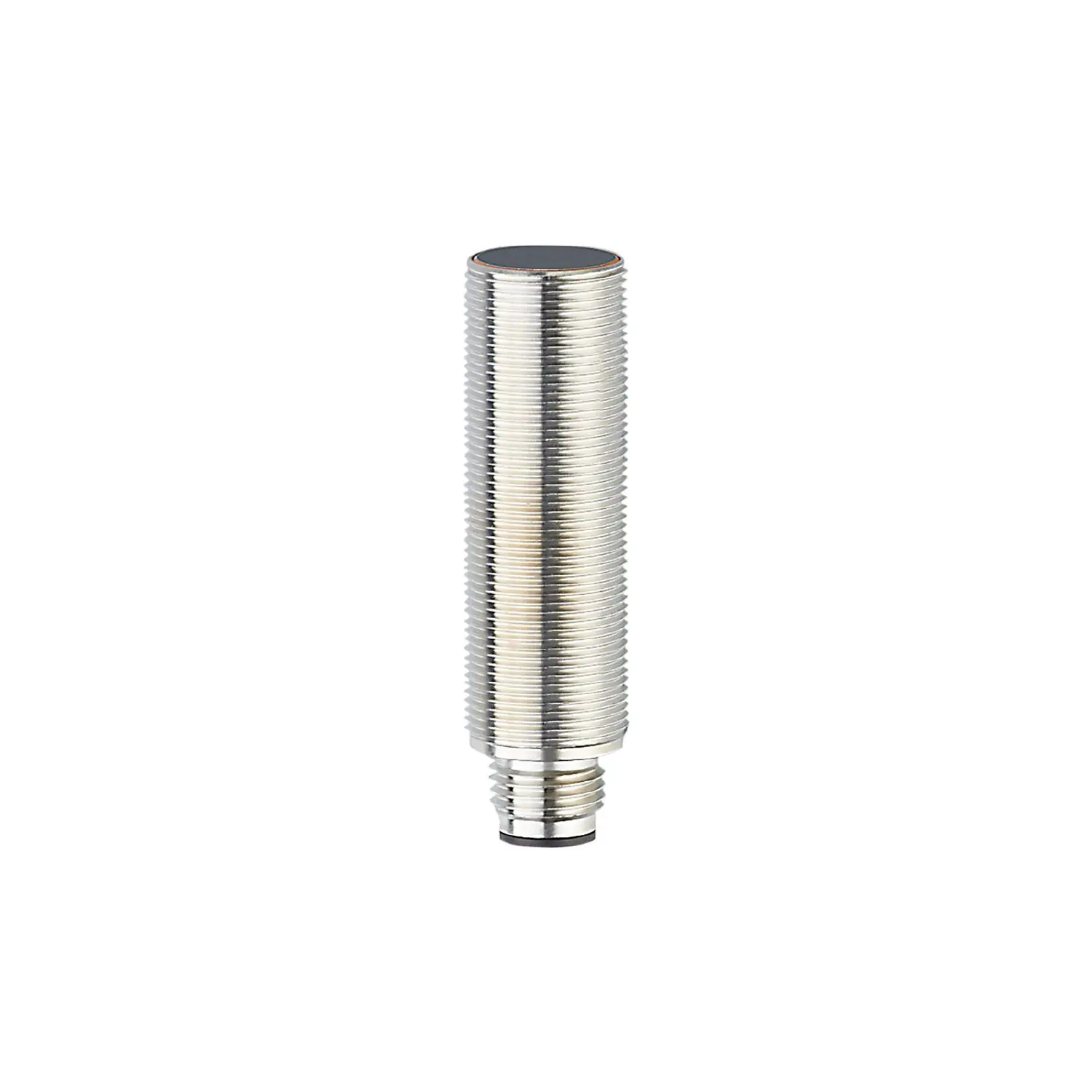

ifm Electronic IG0348 Induktiver Sensor

Product characteristics

• Output function: normally open
• Sensing range [mm]: 5
• Housing: threaded type
• Dimensions [mm]: M18 x 1

Electrical data

• Operating voltage [V]: 20...250 AC/DC
• Protection class: I
• Reverse polarity protection: no

Outputs

• Output function: normally open
• Max. voltage drop switching output DC [V]: 6
• Max. voltage drop switching output AC [V]: 6.5
• Minimum load current [mA]: 5
• Max. leakage current [mA]: 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
• Permanent current rating of switching output AC [mA]: 250; (350 (...50 °C))
• Permanent current rating of switching output DC [mA]: 100
• Short-time current rating of switching output [mA]: 2200; (20 ms / 0,5 Hz)
• Switching frequency AC [Hz]: 25
• Switching frequency DC [Hz]: 100
• Short-circuit proof: no
• Overload protection: no

Detection zone

• Sensing range [mm]: 5
• Real sensing range Sr [mm]: 5 ± 10 %
• Operating distance [mm]: 0...4.05

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 3...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 609
• UL approval: Ta, 0...40 °C
, Enclosure type, Type 1 , power supply, Hazardous voltage , File number UL, E174191

Mechanical data

• Weight [g]: 62.6
• Housing: threaded type
• Mounting: flush mountable
• Dimensions [mm]: M18 x 1
• Thread designation: M18 x 1
• Materials: brass white bronze coated; PC

Displays / operating elements

• Display:
