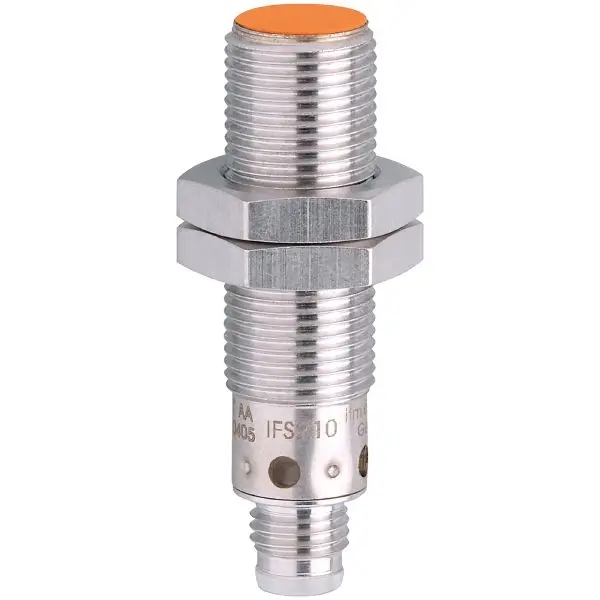

ifm Electronic IFS211 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 7
• Housing: threaded type
• Dimensions [mm]: M12 x 1 / L = 51

Application

• Special feature: Gold-plated contacts; Increased sensing range
• Application: Industrial applications / factory automation

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 10; (24 V)
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 700
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 7
• Real sensing range Sr [mm]: 7 ± 10 %
• Operating distance [mm]: 0...5.7
• Increased sensing range: yes

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 3...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...70
• Protection: IP 67; (if screwed on)

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 10 V, EN 55011, class B
• MTTF [years]: 2017
• UL approval: Ta, -25...70 °C
, Enclosure type, Type 1 , power supply, Class 2 , File number UL, E174191

Mechanical data

• Weight [g]: 25.95
• Housing: threaded type
• Mounting: non-flush mountable
• Dimensions [mm]: M12 x 1 / L = 51
