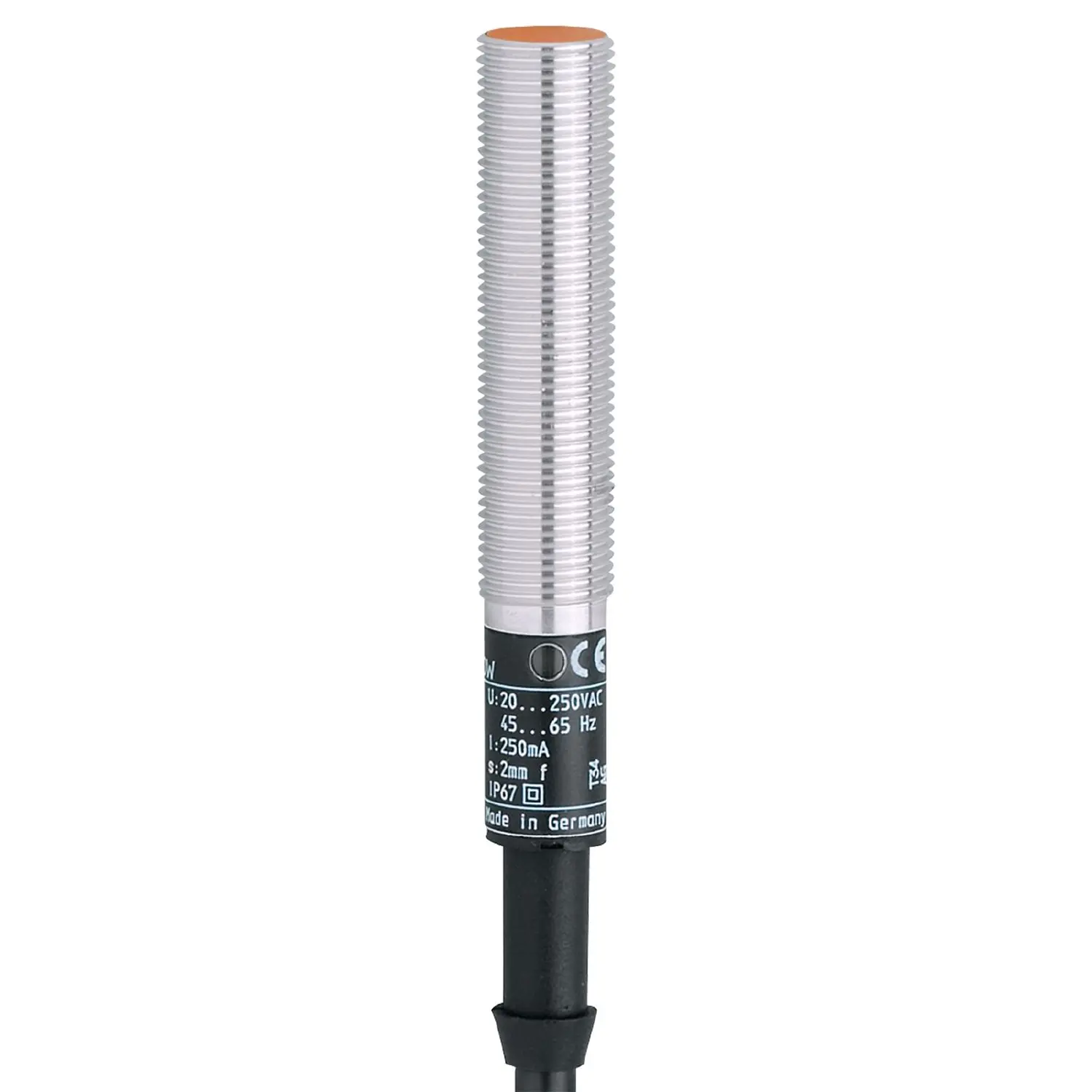

ifm Electronic IF6042 Induktiver Ganzmetallsensor

Product characteristics

• Electrical design: PNP/NPN
• Output function: normally open / normally closed; (selectable)
• Sensing range [mm]: 2
• Housing: threaded type
• Dimensions [mm]: M12 x 1 / L = 71

Electrical data

• Operating voltage [V]: 10...55 DC
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP/NPN
• Output function: normally open / normally closed; (selectable)
• Max. voltage drop switching output DC [V]: 4.6
• Minimum load current [mA]: 4
• Max. leakage current [mA]: 0.5
• Permanent current rating of switching output DC [mA]: 400
• Switching frequency DC [Hz]: 1200
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 2
• Real sensing range Sr [mm]: 2 ± 10 %
• Operating distance [mm]: 0...1.6

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 3...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-5 Surge, 0,5 kV line to line, Ri: 2 Ohm, EN 61000-4-6 HF conducted, 10 V, EN 55011 emission, class B
• MTTF [years]: 1815

Mechanical data

• Weight [g]: 49.7
• Housing: threaded type
• Mounting: flush mountable
• Dimensions [mm]: M12 x 1 / L = 71
• Thread designation: M12 x 1
• Materials: stainless steel (1.4571/316Ti ); PBT

Displays / operating elements

• Display: switching status, 1 x LED, ye
