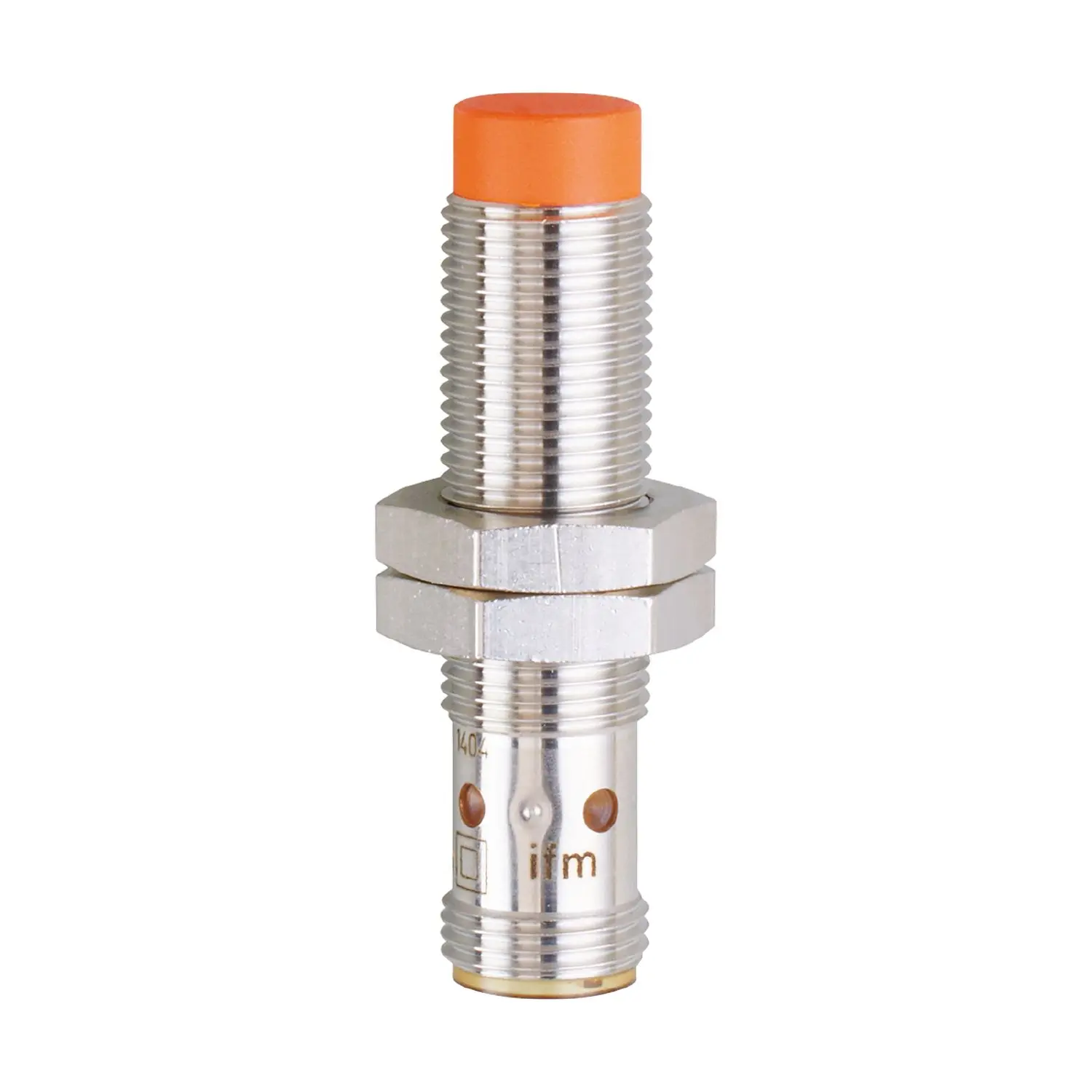

ifm Electronic IF6033 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 4
• Housing: threaded type
• Dimensions [mm]: M12 x 1 / L = 50

Application

• Special feature: Gold-plated contacts; Increased sensing range
• Application: Industrial applications / factory automation

Electrical data

• Operating voltage [V]: 9...30 DC
• Current consumption [mA]: < 25
• Protection class: III
• Reverse polarity protection: yes
• Internal pull-down resistance [kΩ]: 2

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 200
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 4
• Real sensing range Sr [mm]: 4 ± 10 %
• Operating distance [mm]: 0...3.24
• Increased sensing range: yes

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 1...20
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -40...80
• Protection: IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 10 V, EN 55011, class B
• MTTF [years]: 1130

Mechanical data

• Weight [g]: 25.7
• Housing: threaded type
• Mounting: non-flush mountable
• Dimensions [mm]: M12 x 1 / L = 50
• Thread designation: M12 x 1
• Materials: housing: brass white bronze coated; sensing face: P
