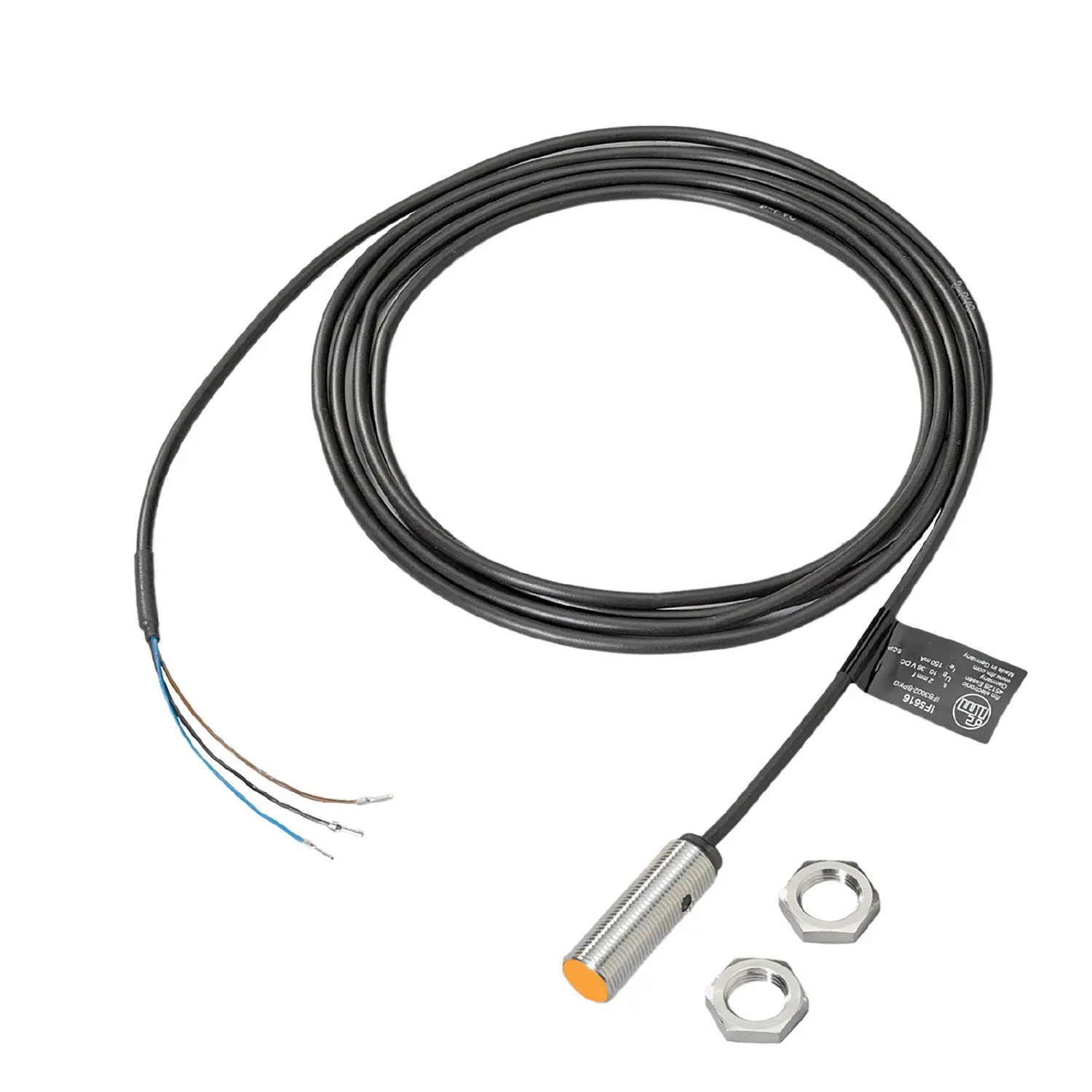

ifm Electronic IF5998 Induktiver Sensor

Product characteristics

• Electrical design: NPN
• Output function: normally open
• Sensing range [mm]: 2
• Housing: threaded type
• Dimensions [mm]: M12 x 1

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 15; (24 V)
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: NPN
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 1000
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 2
• Real sensing range Sr [mm]: 2 ± 10 %
• Operating distance [mm]: 0...1.6

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 2519

Mechanical data

• Weight [g]: 95.6
• Housing: threaded type
• Mounting: flush mountable
• Dimensions [mm]: M12 x 1
• Thread designation: M12 x 1
• Materials: brass white bronze coated; PC

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: lock nuts: 2

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Cable: 2 m, PVC; 3 x 0.34 mm²

IF5998-00 — 13.04.2023 —
