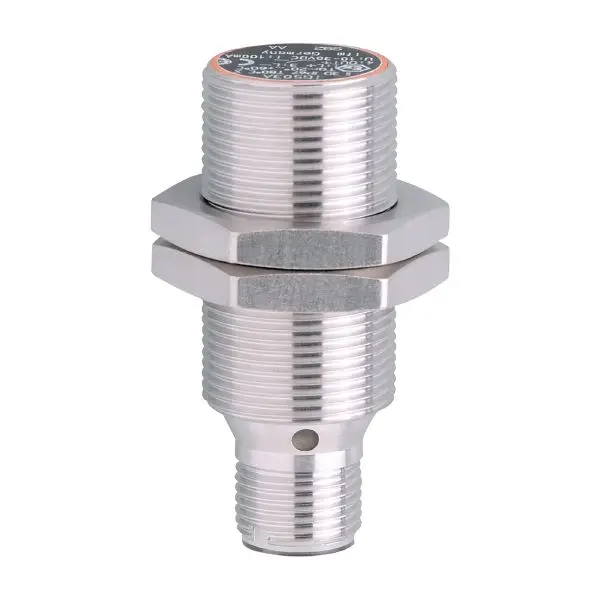

ifm Electronic IF5925 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 2
• Housing: threaded type
• Dimensions [mm]: M12 x 1 / L = 60

Application

• Special feature: Gold-plated contacts

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: < 10
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 200
• Switching frequency DC [Hz]: 1000
• Short-circuit protection: yes
• Overload protection: yes

Detection zone

• Sensing range [mm]: 2
• Real sensing range Sr [mm]: 2 ± 10 %
• Operating distance [mm]: 0...1.62

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 3...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 1083
• Embedded software included: no
• UL approval: Ta, 0...40 °C
, Enclosure type, Type 1 , power supply, Hazardous voltage , UL Approval no., A004 , File number UL, E174191

Mechanical data

• Weight [g]: 28.1
• Housing: threaded type
• Mounting: flush mountable
• Dimensions [mm]: M12 x 1 / L = 60
• Thread designation: M12 x 1
• Materials: housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated

Displays / operating elements

• Display: switching status, 4 x LED
