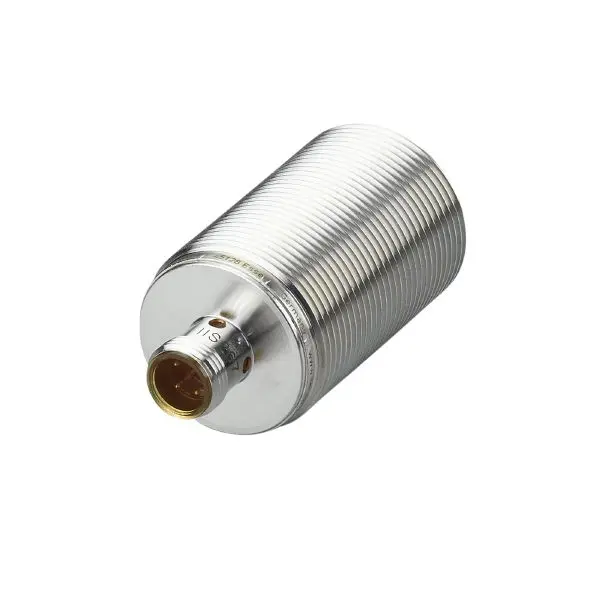

ifm Electronic IF5917, Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 4
• Housing: threaded type
• Dimensions [mm]: M12 x 1 / L = 70

Application

• Special feature: Increased sensing range

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 15; (24 V)
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 250
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 4
• Increased sensing range: yes

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 3...20

Operating conditions

• Ambient temperature [°C]: -25...70
• Protection: IP 67

Tests / approvals

• MTTF [years]: 1971

Mechanical data

• Weight [g]: 30
• Housing: threaded type
• Mounting: flush mountable
• Dimensions [mm]: M12 x 1 / L = 70
• Thread designation: M12 x 1
• Materials: brass nickel-plated; PC

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: lock nuts: 2

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• Connection: Connector: 1 x M12; coding: A

IF5917-00 — 13.04.2023 —
