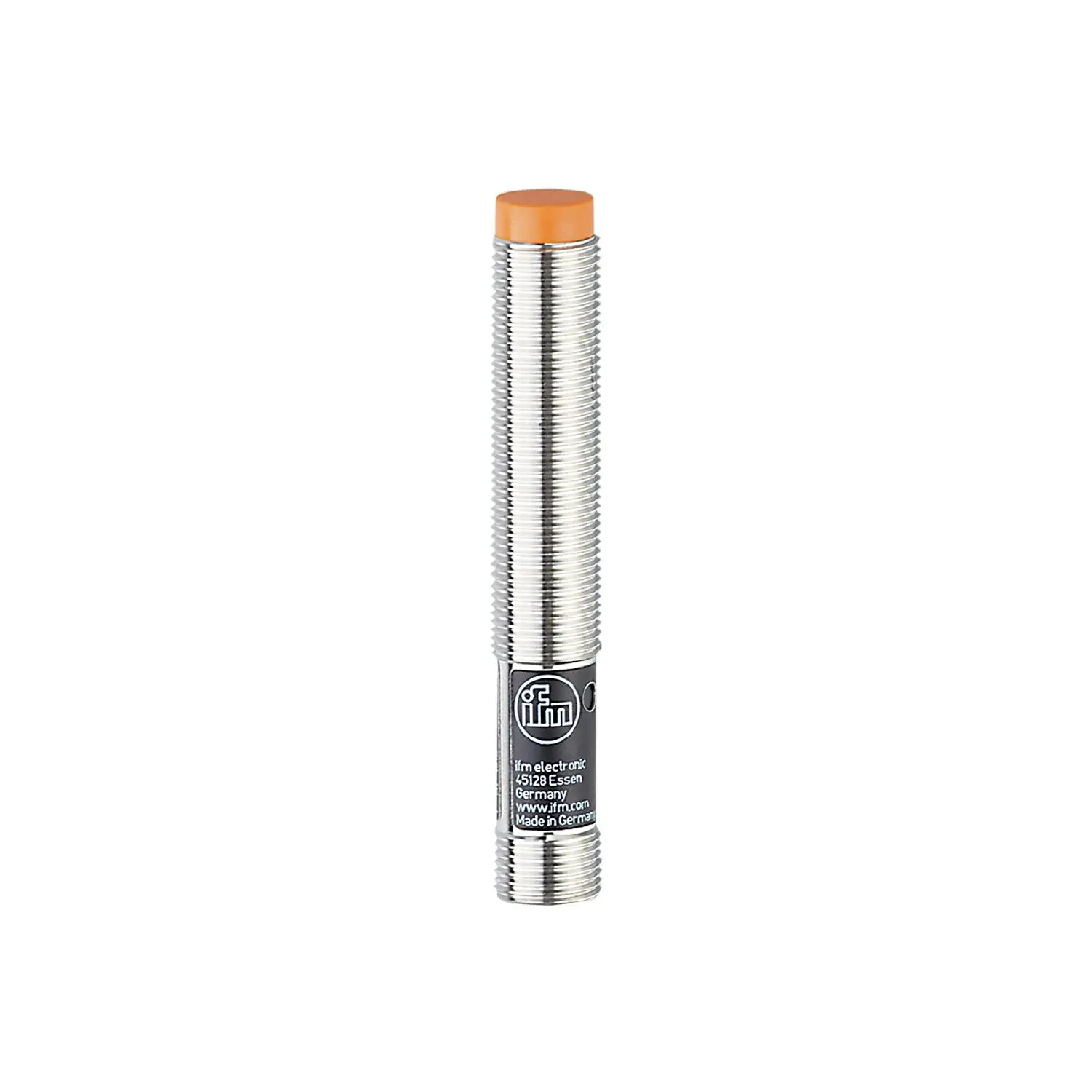

ifm Electronic IF0300 Induktiver Sensor

Product characteristics

• Output function: normally open
• Sensing range [mm]: 4
• Housing: threaded type
• Dimensions [mm]: M12 x 1 / L = 77

Electrical data

• Frequency AC [Hz]: 45...65
• Operating voltage [V]: 20...250 AC
• Protection class: I
• Reverse polarity protection: no

Outputs

• Output function: normally open
• Max. voltage drop switching output AC [V]: 8.5
• Minimum load current [mA]: 8
• Max. leakage current [mA]: 2
• Permanent current rating of switching output AC [mA]: 200; (250 (...50 °C))
• Short-time current rating of switching output [mA]: 900; (20 ms / 0,5 Hz)
• Switching frequency AC [Hz]: 25
• Short-circuit proof: no
• Overload protection: no

Detection zone

• Sensing range [mm]: 4
• Real sensing range Sr [mm]: 4 ± 10 %
• Operating distance [mm]: 0...3.24

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
• Hysteresis [% of Sr]: 3...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 3 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 3 V, EN 55011, class B
• MTTF [years]: 932

Mechanical data

• Weight [g]: 33.1
• Housing: threaded type
• Mounting: non-flush mountable
• Dimensions [mm]: M12 x 1 / L = 77
• Thread designation: M12 x 1
• Materials: brass white bronze coated; sensing face: PBT natural; LED window: PBT natural; Nuts: brass white bronze coated
• Tightening torque [Nm]: A = 3 mm: 3,5 Nm; B: 7 Nm

Displays / operating elements

• Display: switching status, 1 x
