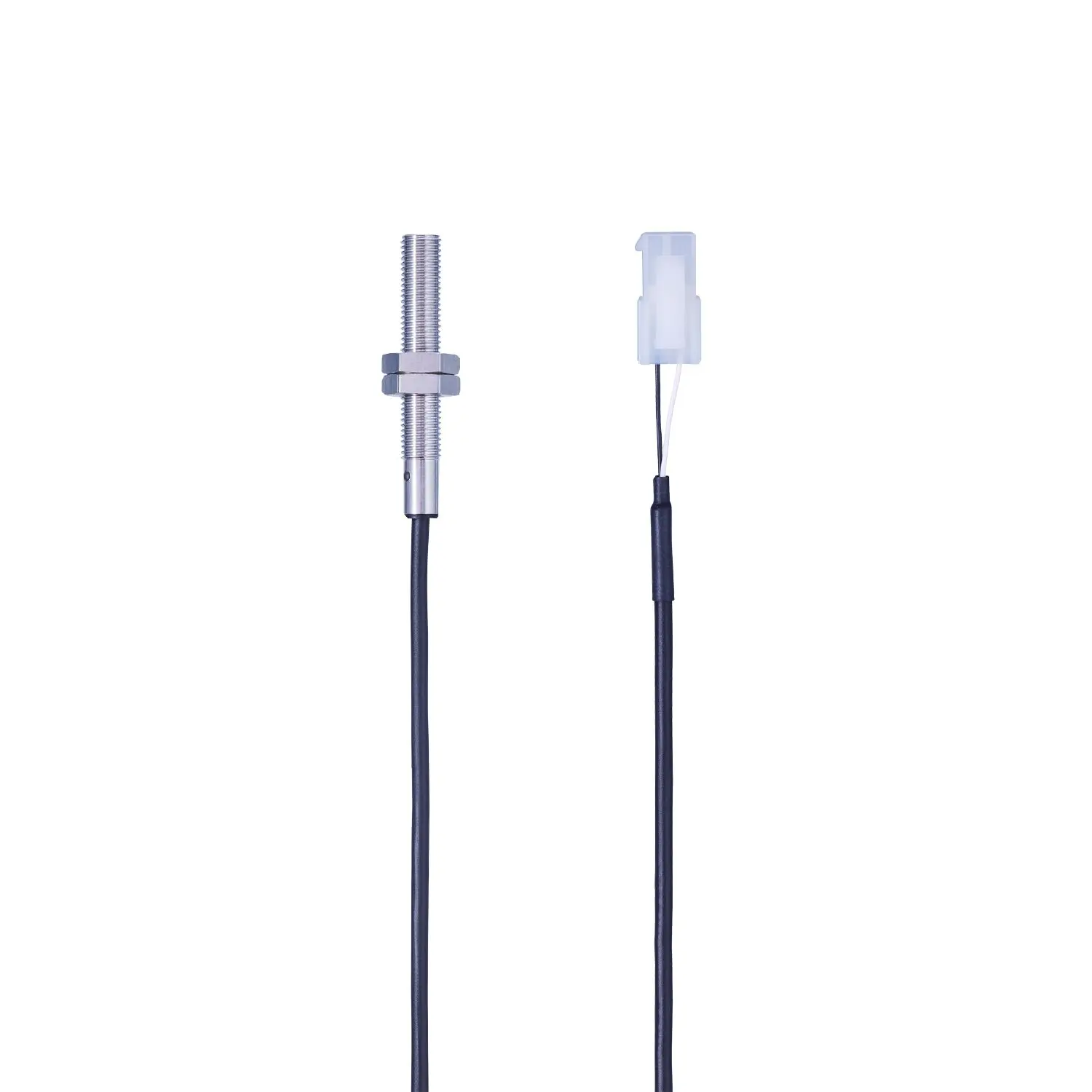

ifm Electronic IE5428 Induktiver Sensor

Product characteristics

• Electrical design: PNP/NPN
• Output function: normally open / normally closed; (selectable)
• Sensing range [mm]: 2
• Housing: threaded type
• Dimensions [mm]: M8 x 1 / L = 53

Electrical data

• Operating voltage [V]: 5...36 DC
• Protection class: III

Outputs

• Electrical design: PNP/NPN
• Output function: normally open / normally closed; (selectable)
• Max. voltage drop switching output DC [V]: 4.6
• Minimum load current [mA]: 4
• Permanent current rating of switching output DC [mA]: 200
• Switching frequency DC [Hz]: 1000
• Short-circuit protection: yes
• Overload protection: yes

Detection zone

• Sensing range [mm]: 2
• Operating distance [mm]: 0...1.62

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 1...20

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 10 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 10 V, EN 55011 emission, class B
• MTTF [years]: 3377

Mechanical data

• Weight [g]: 23.7
• Housing: threaded type
• Mounting: flush mountable
• Dimensions [mm]: M8 x 1 / L = 53
• Thread designation: M8 x 1
• Materials: threaded sleeve: brass white bronze coated; sensing face: LCP black
• Tightening torque [Nm]: A = 5 mm: 1 Nm; B: 2 Nm

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: lock nuts: 2

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Cable: 0.2 m,
