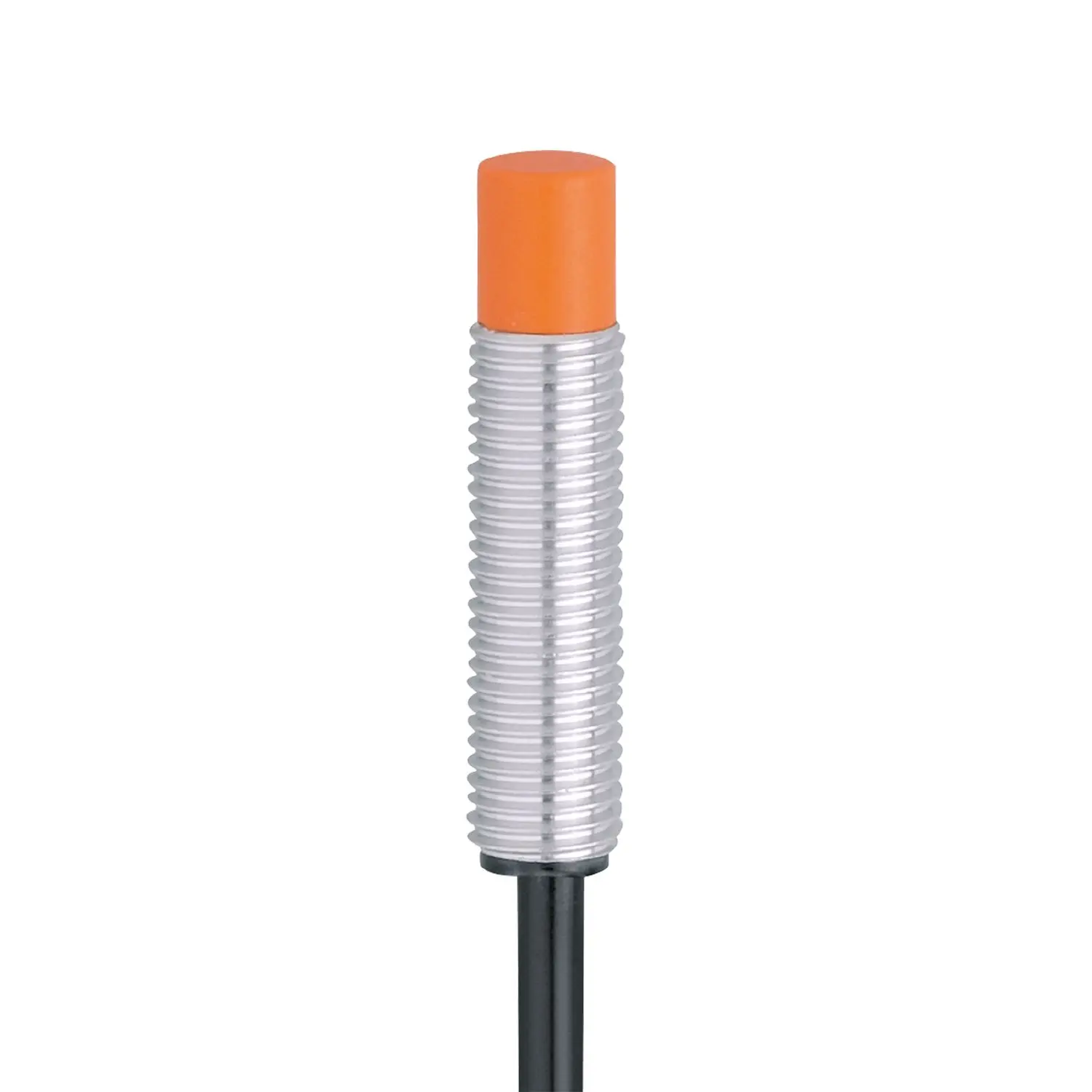

ifm Electronic IE5345 Induktiver Sensor

Product characteristics

• Electrical design: PNP/NPN
• Output function: normally open
• Sensing range [mm]: 5
• Housing: threaded type
• Dimensions [mm]: M8 x 1 / L = 37

Electrical data

• Operating voltage [V]: 10...30 DC
• Current consumption [mA]: < 10; (only in 3-wire operation)
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP/NPN
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.8
• Minimum load current [mA]: 2; (only in 2-wire operation)
• Max. leakage current [mA]: 0.5; (only in 2-wire operation)
• Permanent current rating of switching output DC [mA]: 100
• Switching frequency DC [Hz]: 700
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 5
• Real sensing range Sr [mm]: 5 ± 10 %
• Operating distance [mm]: 0...4.05

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: 0...60
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 2988
• UL approval: Ta, -25...80 °C
, Enclosure type, Type 1 , power supply, Limited Voltage/Current , File number UL, E174191

Mechanical data

• Weight [g]: 50.8
• Housing: threaded type
• Mounting: non-flush mountable
• Dimensions [mm]: M8 x 1 / L = 37
• Thread designation: M8 x 1
• Materials: brass white bronze coated; sensing face: LCP

Displays / operating elements

• Display: switching status, 1 x LED, yellow
