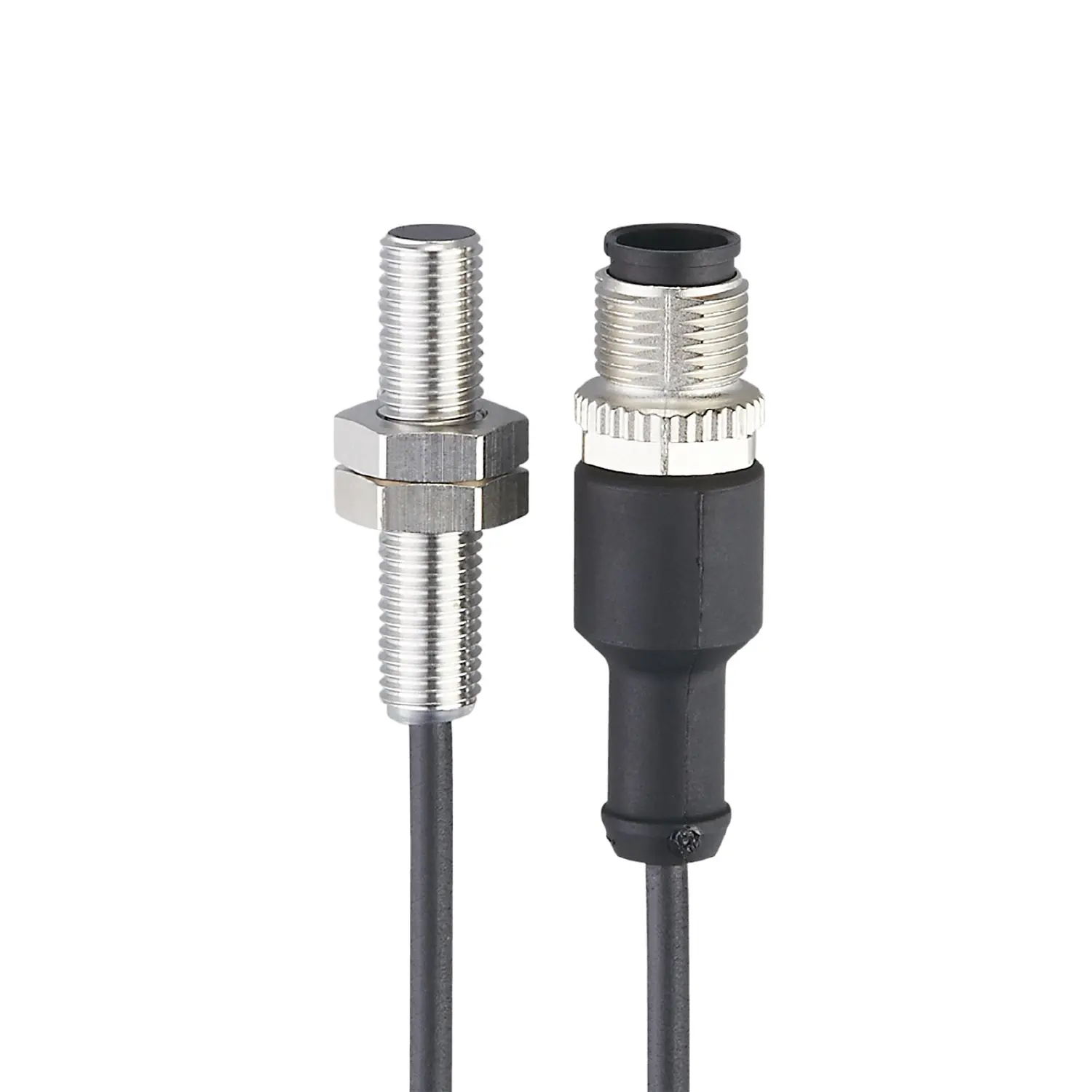

ifm Electronic IE5324 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 2
• Housing: threaded type
• Dimensions [mm]: M8 x 1

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 15; (24 V)
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 200
• Short-time current rating of switching output [mA]: 200
• Switching frequency DC [Hz]: 1000
• Short-circuit protection: yes
• Overload protection: yes

Detection zone

• Sensing range [mm]: 2
• Real sensing range Sr [mm]: 2 ± 10 %
• Operating distance [mm]: 0...1.62

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...70
• Protection: IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, 4 kV CD / 8 kV AD
, EN 61000-4-3 HF radiated, 3 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-6 HF conducted, 3 V, EN 55011, class B
• MTTF [years]: 2804

Mechanical data

• Weight [g]: 39.5
• Housing: threaded type
• Mounting: flush mountable
• Dimensions [mm]: M8 x 1
• Thread designation: M8 x 1
• Materials: brass white bronze coated; LCP
• Tightening torque [Nm]: A = 5 mm: 1 Nm; B: 2 Nm

Displays / operating elements

• Display: switching status, 1 x LED, red

Accessories

• Items supplied: lock nuts: 2

Remarks

• Pack quantity: 1 pcs.
