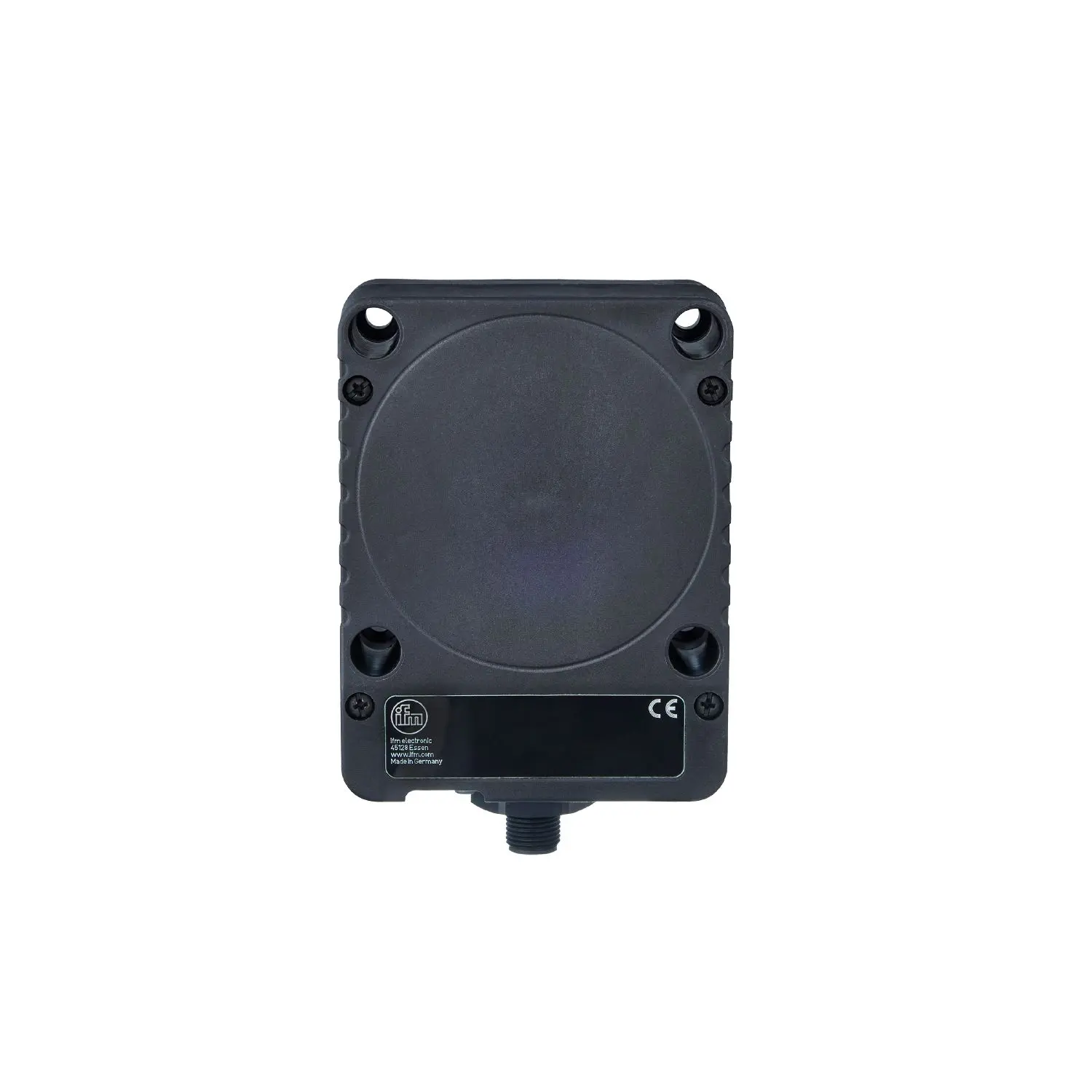

ifm Electronic ID5073 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 20...60
• Housing: rectangular
• Dimensions [mm]: 105 x 80 x 40

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: < 15
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 100
• Short-circuit protection: yes
• Overload protection: yes

Detection zone

• Sensing range [mm]: 20...60
• Sensing range adjustable: yes
• Factory setting sensing range [mm]: 60
• Real sensing range Sr [mm]: 60 ± 10 %
• Operating distance [mm]: 0...48.6

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 61000-4-2 ESD, - CD / 8 kV AD
, EN 61000-4-3 HF radiated, 3 V/m, EN 61000-4-4 Burst, 2 kV, EN 61000-4-5 Surge, 0,5 kV line to line, Ri: 2 Ohm, EN 61000-4-6 HF conducted, 3 V, EN 55011, class B

Mechanical data

• Weight [g]: 488.5
• Housing: rectangular
• Mounting: non-flush mountable
• Dimensions [mm]: 105 x 80 x 40
• Materials: upper part: PP; lower part: PPE

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: screwdriver: 1

Remarks

• Pack quantity: 1 pcs.
