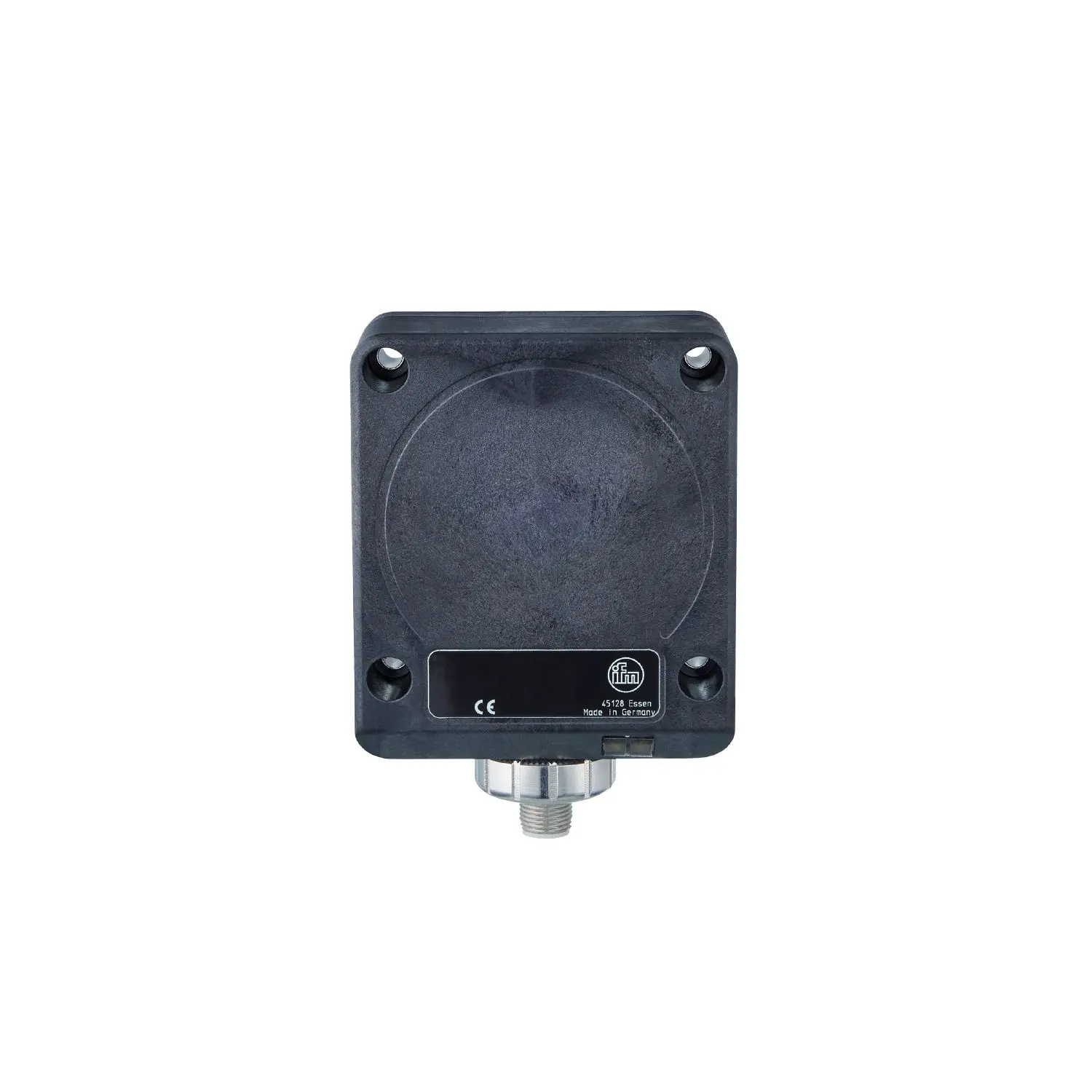

ifm Electronic ID5072 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: complementary
• Sensing range [mm]: 50
• Housing: rectangular
• Dimensions [mm]: 92 x 80 x 40

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 20; (24 V)
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: complementary
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 70
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 50
• Real sensing range Sr [mm]: 50; (mounted flush with mild steel (ST37))
• Operating distance [mm]: 0...40.5; (mounted flush with mild steel (ST37); non flush: operating distance reduced by max. 5.5 mm)

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.85 / brass: 0.48 / aluminium: 0.46 / copper: 0.38
• Hysteresis [% of Sr]: 3...20
• Switch point drift [% of Sr]: -15...15

Operating conditions

• Ambient temperature [°C]: -25...70
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,

Mechanical data

• Weight [g]: 423.5
• Housing: rectangular
• Mounting: flush mountable
• Type of mounting: rail; (TH35 (EN 60715))
• Dimensions [mm]: 92 x 80 x 40
• Materials: PPE black; brass white bronze coated; diecast zinc

Displays / operating elements

• Display: switching status, 1 x LED, yellow
, operation, 1 x LED, green

Accessories

• Items supplied: sealing plug: 1

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug
