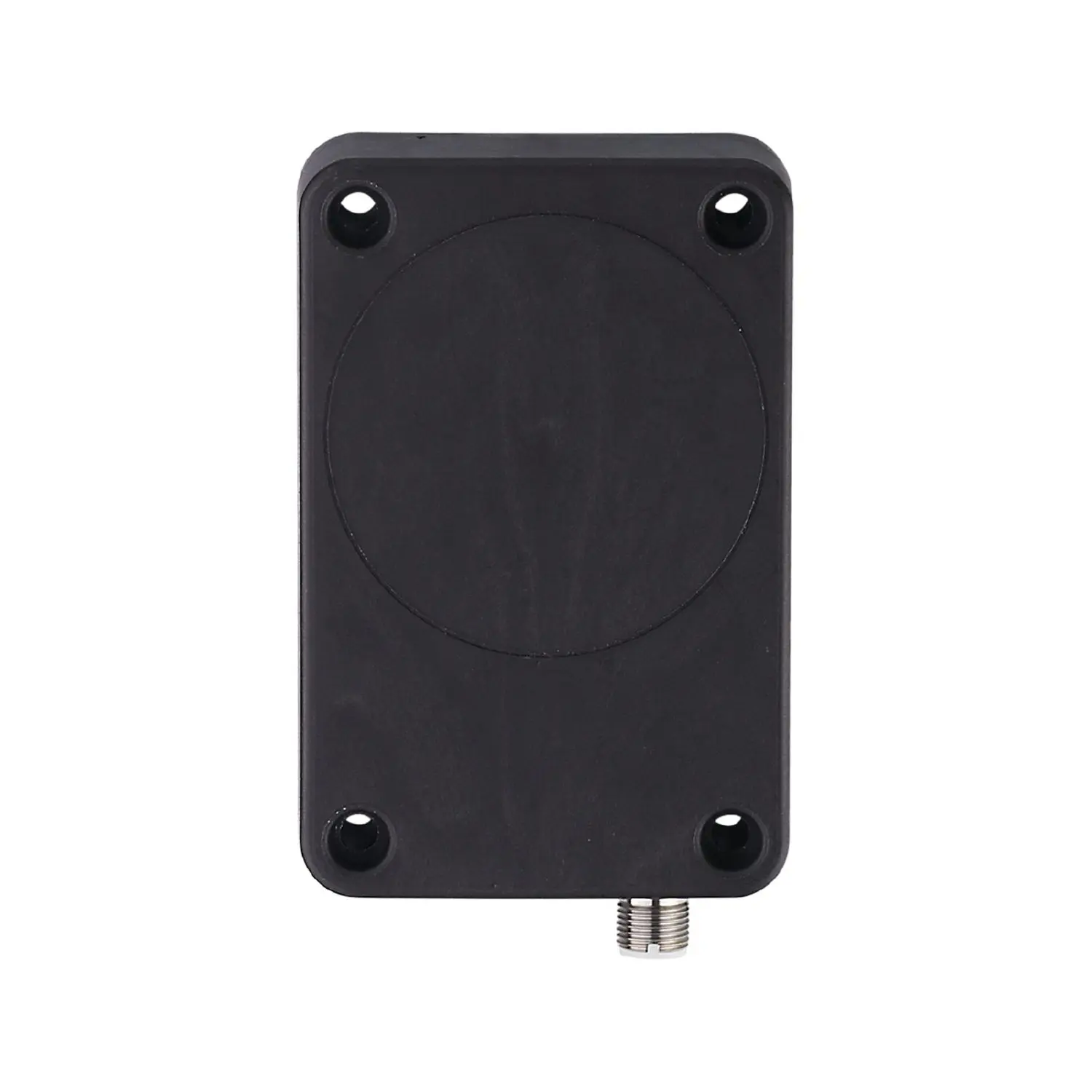

ifm Electronic ID5063 Induktiver Sensor

Product characteristics

• Electrical design: PNP
• Output function: normally open
• Sensing range [mm]: 50
• Housing: rectangular
• Dimensions [mm]: 120 x 80 x 30

Application

• Special feature: Gold-plated contacts

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 15; (24 V)
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: PNP
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 8
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 50
• Sensing range adjustable: yes
• Factory setting sensing range [mm]: 50
• Real sensing range Sr [mm]: 50 ± 10 %
• Operating distance [mm]: 0...40.5

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 1390

Mechanical data

• Weight [g]: 479.5
• Housing: rectangular
• Mounting: non-flush mountable
• Dimensions [mm]: 120 x 80 x 30
• Materials: housing: PP black; sensing face: PP black

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Accessories

• Items supplied: screwdriver: 1

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug
