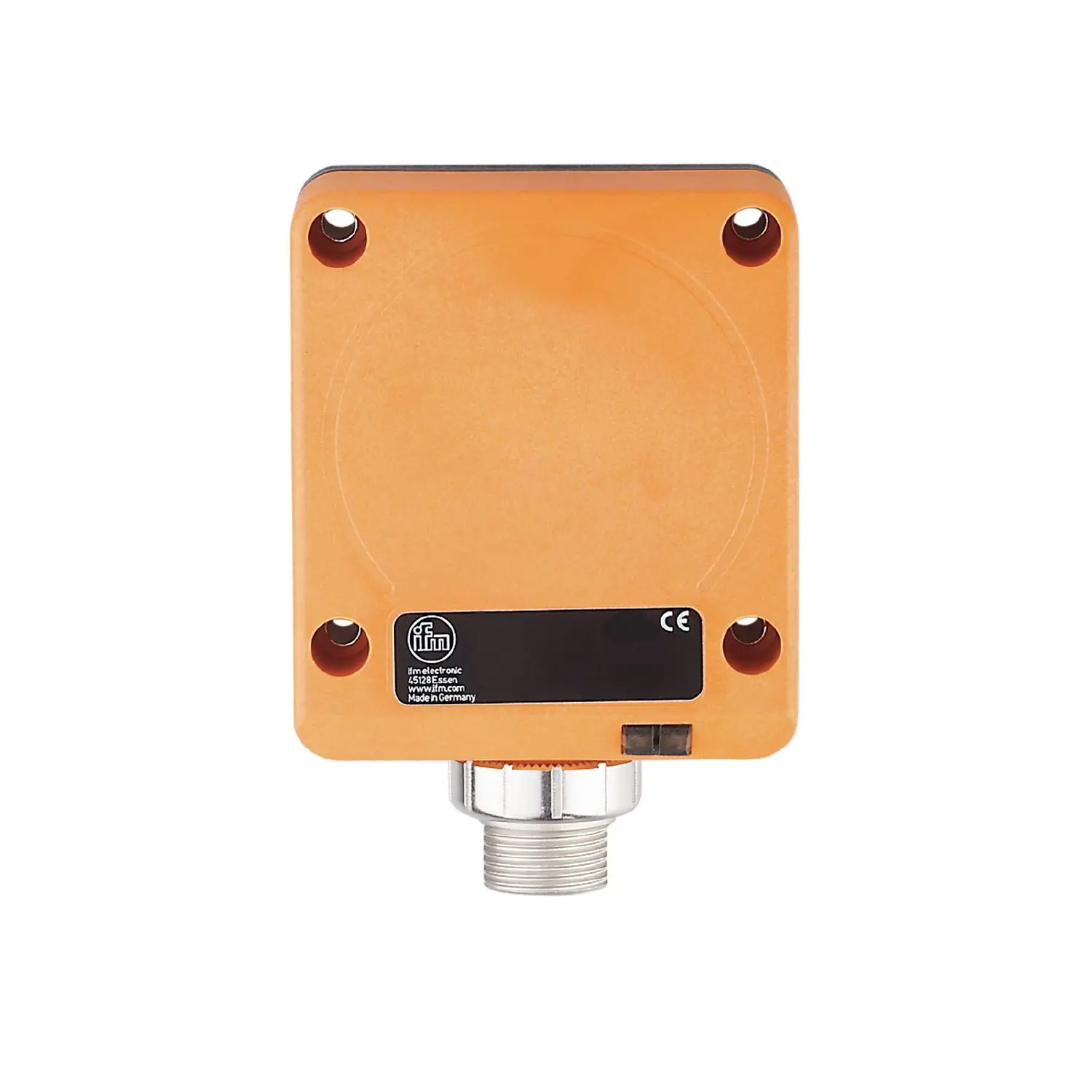

ifm Electronic ID0038 Induktiver Sensor

Product characteristics

• Output function: normally open
• Sensing range [mm]: 50
• Housing: rectangular
• Dimensions [mm]: 92 x 80 x 40

Electrical data

• Frequency AC [Hz]: 47...63
• Operating voltage [V]: 20...140 AC / 10...140 DC
• Protection class: I
• Reverse polarity protection: yes

Outputs

• Output function: normally open
• Max. voltage drop switching output DC [V]: 6
• Max. voltage drop switching output AC [V]: 6
• Minimum load current [mA]: 5.5
• Max. leakage current [mA]: 1.7 (140 V AC/DC)
• Permanent current rating of switching output AC [mA]: 450
• Permanent current rating of switching output DC [mA]: 450
• Short-time current rating of switching output [mA]: 2200; (20 ms / 0,5 Hz)
• Switching frequency AC [Hz]: 25
• Switching frequency DC [Hz]: 25
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 50
• Operating distance [mm]: 0...40.5; (mounted flush with mild steel (ST37))

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.85 / brass: 0.48 / aluminium: 0.46 / copper: 0.38
• Hysteresis [% of Sr]: 3...20
• Switch point drift [% of Sr]: -15...15

Operating conditions

• Ambient temperature [°C]: -25...70
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 352
• UL approval: Ta, 0...40 °C
, Enclosure type, Type 1 , power supply, Hazardous voltage , File number UL, E174191

Mechanical data

• Weight [g]: 432.5
• Housing: rectangular
• Mounting: flush mountable
• Dimensions [mm]: 92 x 80 x 40
• Materials: PPE; diecast zinc; brass nickel-plated
