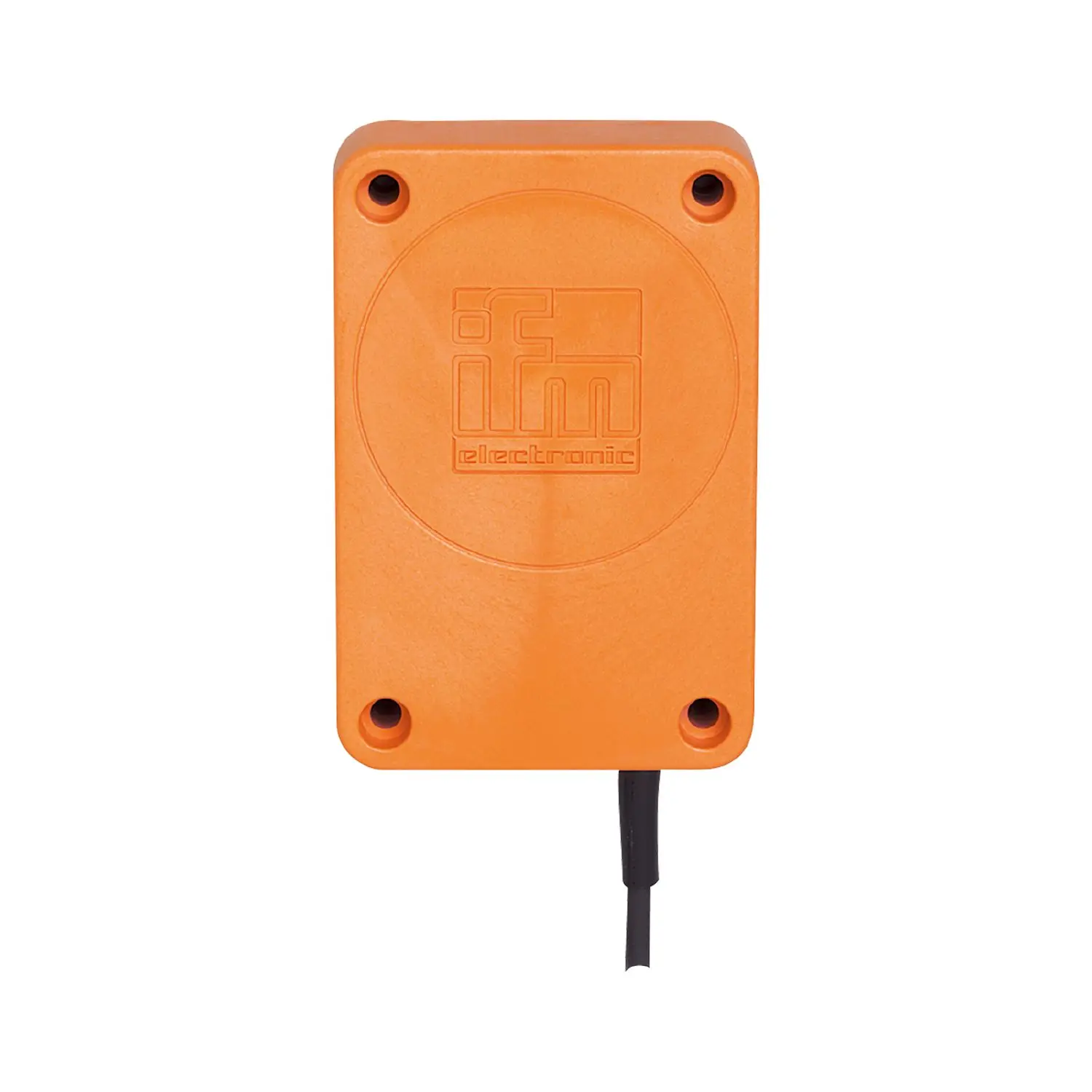

ifm Electronic ID0015 Induktiver Sensor

Product characteristics

• Output function: normally closed
• Sensing range [mm]: 50
• Housing: rectangular
• Dimensions [mm]: 120 x 80 x 30

Electrical data

• Operating voltage [V]: 20...250 AC/DC
• Protection class: II
• Reverse polarity protection: no

Outputs

• Output function: normally closed
• Max. voltage drop switching output DC [V]: 5
• Max. voltage drop switching output AC [V]: 5.5
• Minimum load current [mA]: 5
• Max. leakage current [mA]: 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
• Permanent current rating of switching output AC [mA]: 250; (350 (...50 °C))
• Permanent current rating of switching output DC [mA]: 100
• Short-time current rating of switching output [mA]: 2200; (20 ms / 0,5 Hz)
• Switching frequency AC [Hz]: 25
• Switching frequency DC [Hz]: 35
• Short-circuit proof: no
• Overload protection: no

Detection zone

• Sensing range [mm]: 50
• Sensing range adjustable: yes
• Factory setting sensing range [mm]: 50
• Real sensing range Sr [mm]: 50 ± 10 %
• Operating distance [mm]: 0...40.5

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 65

Tests / approvals

• EMC: EN 60947-5-2,
, EN 55011, class B
• MTTF [years]: 512

Mechanical data

• Weight [g]: 592
• Housing: rectangular
• Mounting: non-flush mountable
• Dimensions [mm]: 120 x 80 x 30
• Materials: PPE modified

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Electrical connection
