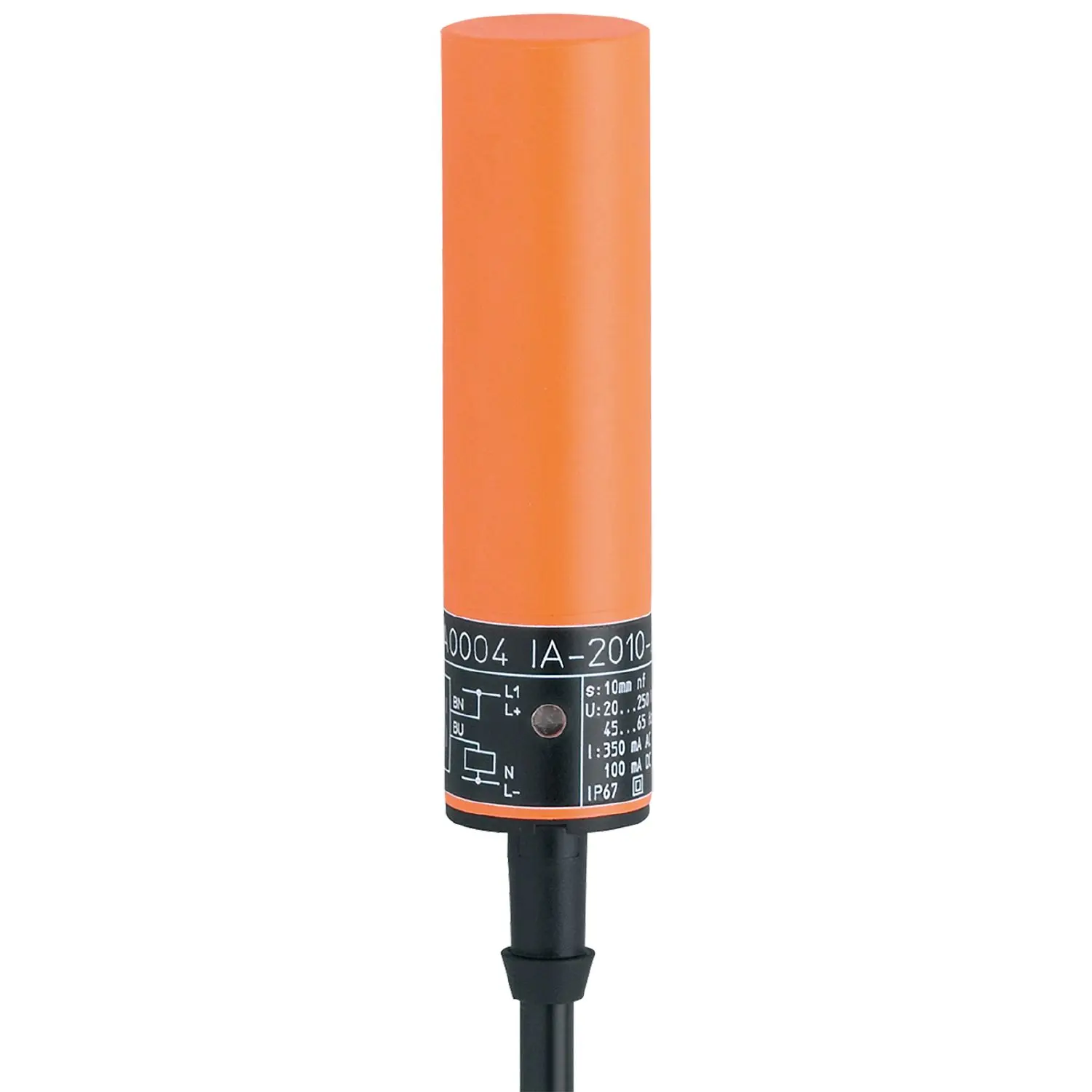

ifm Electronic IA0068 Induktiver Sensor

Product characteristics

• Output function: normally open
• Sensing range [mm]: 10
• Housing: cylindrical
• Dimensions [mm]: Ø 20 / L = 77

Electrical data

• Operating voltage [V]: 20...250 AC/DC
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Output function: normally open
• Max. voltage drop switching output DC [V]: 6
• Max. voltage drop switching output AC [V]: 6.5
• Minimum load current [mA]: 5
• Max. leakage current [mA]: 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
• Permanent current rating of switching output AC [mA]: 100; (350 (...50 °C))
• Permanent current rating of switching output DC [mA]: 100
• Short-time current rating of switching output [mA]: 2200; (20 ms / 0,5 Hz)
• Switching frequency AC [Hz]: 25
• Switching frequency DC [Hz]: 70
• Short-circuit proof: no
• Overload protection: yes

Detection zone

• Sensing range [mm]: 10
• Real sensing range Sr [mm]: 10 ± 10 %
• Operating distance [mm]: 0...8.1

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
• Hysteresis [% of Sr]: 1...15
• Switch point drift [% of Sr]: -10...10

Operating conditions

• Ambient temperature [°C]: -25...100
• Protection: IP 67

Tests / approvals

• EMC: EN 60947-5-2,
• MTTF [years]: 605

Mechanical data

• Weight [g]: 180.5
• Housing: cylindrical
• Mounting: non-flush mountable
• Dimensions [mm]: Ø 20 / L = 77
• Materials: PBT

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Electrical connection

• Required protection: miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Accessories
