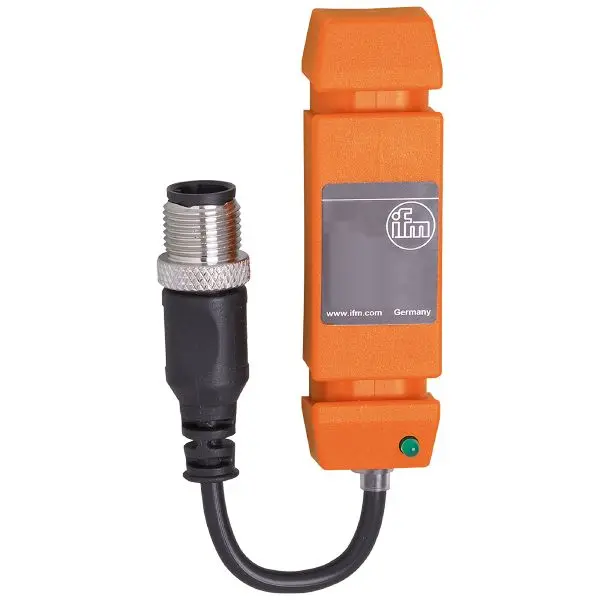

ifm Electronic I85003 Induktiver Schlauchsensor

Product characteristics

• Electrical design: NPN
• Output function: normally open
• Sensing range [mm]: < 14
• Housing: rectangular
• Dimensions [mm]: 70 x 20 x 12

Application

• Operating principle: static

Electrical data

• Operating voltage [V]: 10...35 DC
• Current consumption [mA]: < 15
• Protection class: III
• Reverse polarity protection: yes

Outputs

• Electrical design: NPN
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2
• Permanent current rating of switching output DC [mA]: 200
• Short-circuit protection: yes
• Overload protection: yes

Detection zone

• Sensing range [mm]: < 14
• Resolution of steel ball (diameter) [mm]: 3
• Max. part speed [m/s]: 35

Response times

• Pulse stretching [ms]: 100
• Max. fall time [ms]: 100
• Response time [ms]: < 0.5

Operating conditions

• Ambient temperature [°C]: -25...70
• Protection: IP 67

Tests / approvals

• MTTF [years]: 1323
• UL approval: Ta, -25...70 °C
, Enclosure type, Type 4X (indoor use only) / 12 and 13 , power supply, Class 2 , File number UL, E174191

Mechanical data

• Weight [g]: 59.5
• Housing: rectangular
• Dimensions [mm]: 70 x 20 x 12
• Materials: housing: PC

Displays / operating elements

• Display: switching status, 1 x LED, yellow
, operation, 1 x LED, green

Accessories

• Items supplied: fixing straps: 2

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• Connection: Cable: 0.09 m, PUR
• Connection: Connector: 1 x M12; coding: A

I85003-00 — 10.11.2009 —
