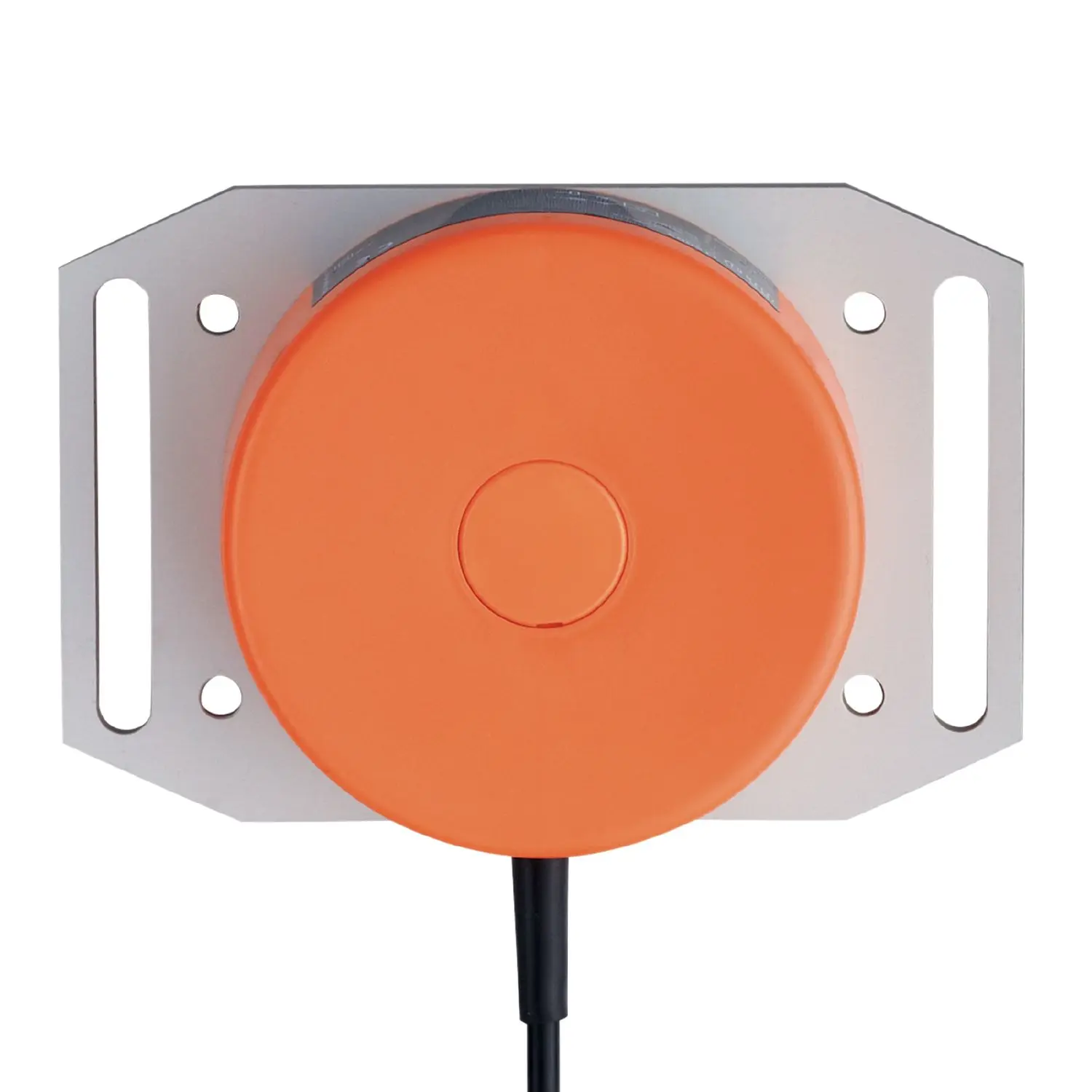

ifm Electronic I17004 Induktiver Flächensensor

Product characteristics

• Electrical design: NPN
• Output function: normally open
• Sensing range [mm]: 20...70
• Housing: cylindrical
• Dimensions [mm]: Ø 100 / L = 45

Electrical data

• Operating voltage [V]: 10...36 DC
• Current consumption [mA]: 15; (24 V)
• Protection class: II
• Reverse polarity protection: yes

Outputs

• Electrical design: NPN
• Output function: normally open
• Max. voltage drop switching output DC [V]: 2.5
• Permanent current rating of switching output DC [mA]: 250
• Switching frequency DC [Hz]: 5
• Short-circuit protection: yes
• Type of short-circuit protection: pulsed
• Overload protection: yes

Detection zone

• Sensing range [mm]: 20...70
• Sensing range adjustable: yes
• Factory setting sensing range [mm]: 70
• Real sensing range Sr [mm]: 70 ± 10 %

Accuracy / deviations

• Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
• Hysteresis [% of Sr]: < 15
• Switch point drift [% of Sr]: -15...15

Operating conditions

• Ambient temperature [°C]: -20...70
• Protection: IP 65

Tests / approvals

• EMC: EN 60947-5-2,

Mechanical data

• Weight [g]: 685.5
• Housing: cylindrical
• Mounting: non-flush mountable
• Type of mounting: with mounting plate
• Dimensions [mm]: Ø 100 / L = 45
• Materials: PBT; Mounting plate: aluminium anodised

Displays / operating elements

• Display: switching status, 1 x LED, yellow

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• Connection: Cable: 2 m, PVC; 3 x 0.5 mm²

I17004-01 — 19.09.2014 —
