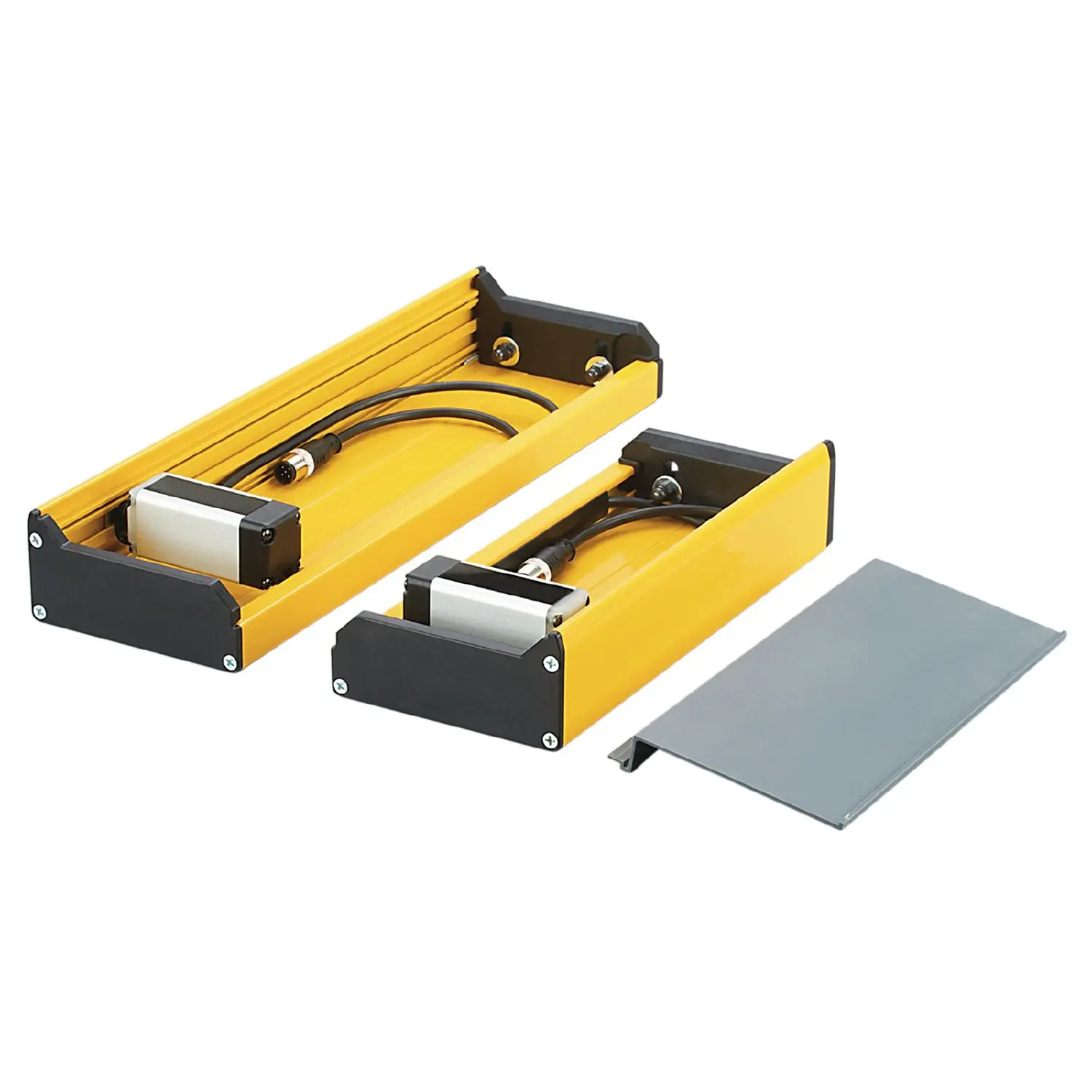

ifm Electronic EY5020 Mutingarm Set

Product characteristics

• Type of light: infrared light

Application

• Design: crossbeam muting with two crossbeam multi-beam light barriers
• Function principle: Through-beam sensor

Electrical data

• Operating voltage [V]: 19.2...28.8 DC
• Current consumption [mA]: 30
• Protection class: III
• Reverse polarity protection: yes
• Type of light: infrared light
• Wave length [nm]: 940

Outputs

• Electrical design: PNP
• Output function: dark-on mode
• Max. voltage drop switching output DC [V]: 0.5
• Permanent current rating of switching output DC [mA]: 100
• Short-circuit protection: yes
• Overload protection: yes

Detection zone

• Range [m]: < 3.5

Operating conditions

• Ambient temperature [°C]: -30...55
• Protection: IP 65

Tests / approvals

• EMC: EN 60947-5-2,

Mechanical data

• Weight [g]: 3540
• Materials: aluminium; polypropylene
• Lens material: polycarbonate-ABS

Displays / operating elements

• Display: transmitter, LED, yellow
, receiver, LED, green/red

Remarks

• Pack quantity: 4 pcs.

Electrical connection - receiver 1

• Connection: Connector: 1 x M12; coding: A; Moulded body: blue

Electrical connection - receiver 2

• Connection: Connector: 1 x M12; coding: A; Moulded body: red

Electrical connection - transmitter 1

• Connection: Connector: 1 x M12; coding: A; Moulded body: blue

Electrical connection - transmitter 2

• Connection: Connector: 1 x M12; coding: A; Moulded body: red

EY5020-00 — 25.03.2019 —
