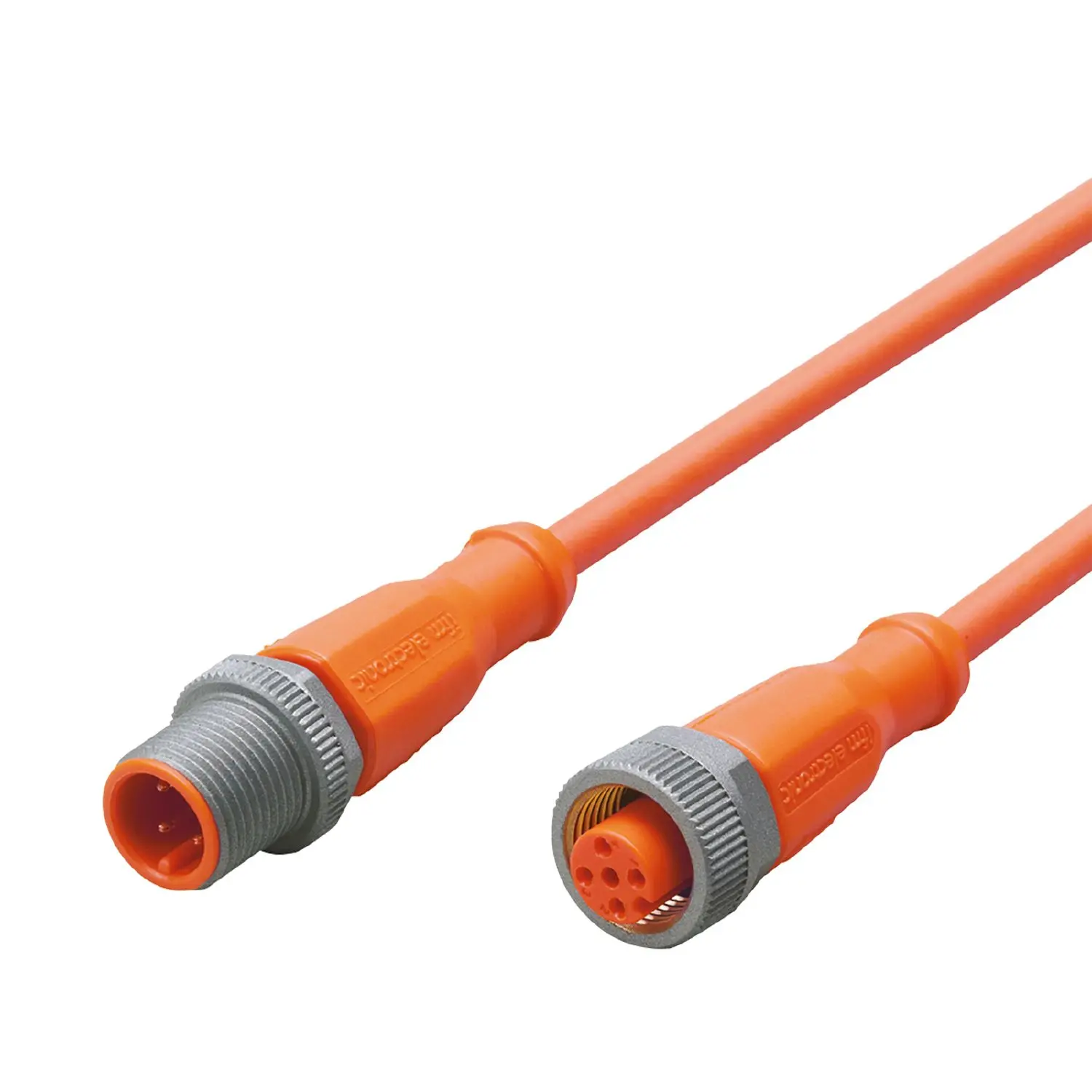

ifm Electronic EVW135 Verbindungskabel

Application

• Special feature: Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
• Application: welding applications
• Free from silicone: yes

Electrical data

• Operating voltage [V]: < 250 AC / < 300 DC
• Protection class: II
• Max. current load total [A]: 4

Operating conditions

• Ambient temperature [°C]: -25...90
• Note on ambient temperature: cULus: ...75
• Ambient temperature (moving) [°C]: -25...90
• Note on ambient temperature (moving): cULus: ...75
• Storage temperature [°C]: -25...55
• Storage humidity [%]: 10...100
• Other climatic conditions for storage according to stated class: 1K22/ DIN 60721-3-1
• Protection: IP 65; IP 67; IP 68; IP 69K

Mechanical data

• Weight [g]: 283.5
• Materials: housing: TPU orange; Sealing: FKM
• Material nut: brass, anti-spatter
• Drag chain suitability: yes
• Drag chain suitability: bending radius for flexible use, min. 10 x cable diameter
, travel speed, max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² , bending cycles, > 2 Mio., torsional strain, ± 180 °/m

Remarks

• Remarks: with 2 label holders 30 mm long
• Pack quantity: 1 pcs.

Electrical connection - plug

• : Connector: 1 x M12, straight; coding: A; Locking: brass, anti-spatter; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection

• Connection: Cable: 8 m, PUR, Halogen-free, orange, Ø 4.9 mm; not irradiated (can be recycled); resistant to welding sparks; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

• : Connector: 1 x M12, straight; coding: A; Locking: brass, anti-spatter; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
