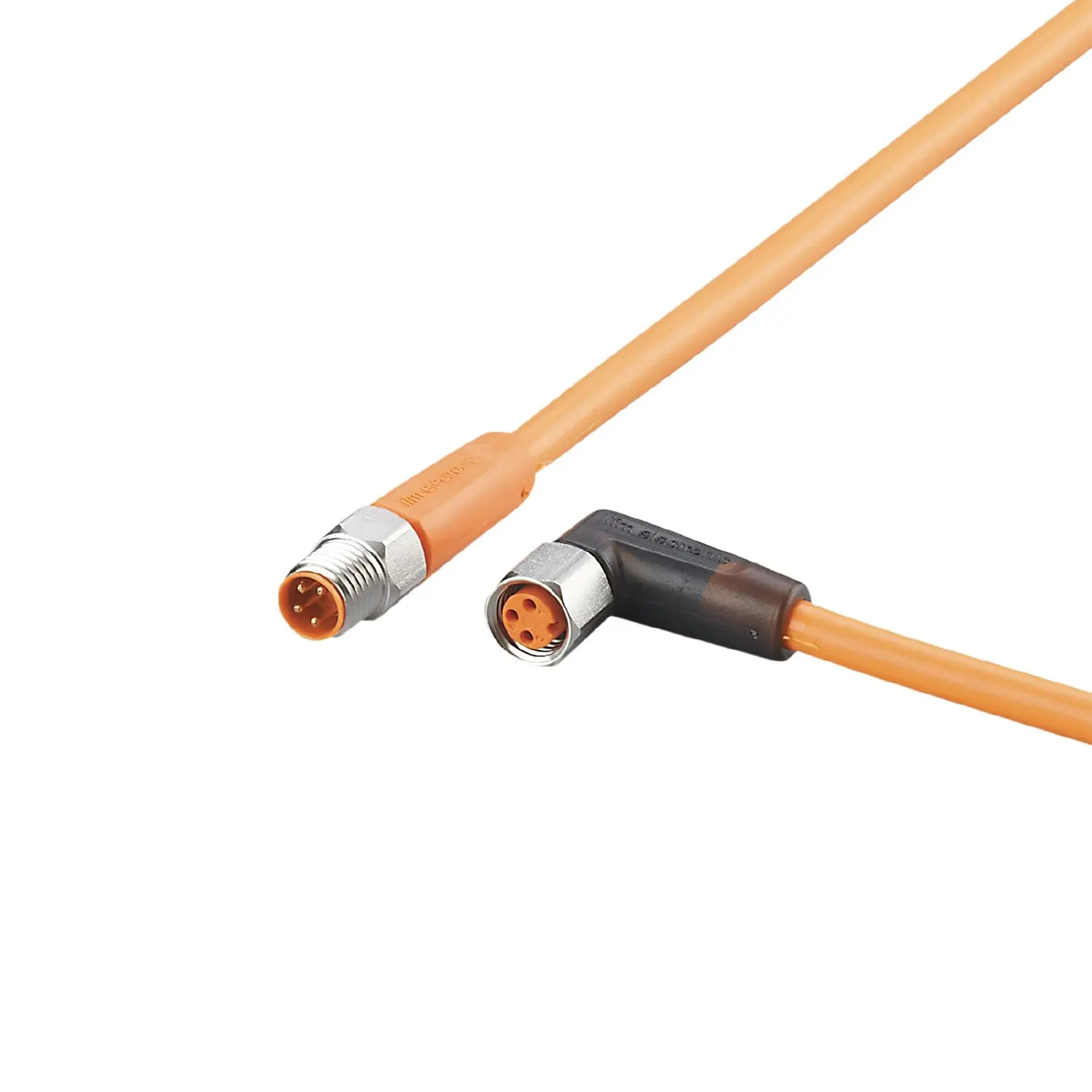

ifm Electronic EVT207 Verbindungskabel

Application

• Special feature: Free from silicone; Gold-plated contacts; Drag chain suitability
• Application: hygienic and wet areas in the food industry
• Free from silicone: yes

Electrical data

• Operating voltage [V]: 10...36 DC
• Protection class: III
• Max. current load total [A]: 3

Outputs

• Electrical design: PNP

Operating conditions

• Ambient temperature [°C]: -25...80
• Note on ambient temperature: cULus: ...50 °C
• Ambient temperature (moving) [°C]: 5...80
• Note on ambient temperature (moving): cULus: ...50 °C
• Protection: IP 65; IP 67; IP 68; IP 69K

Tests / approvals

• MTTF [years]: 31710

Mechanical data

• Weight [g]: 84.3
• Dimensions [mm]: 10 x 10 x 36
• Materials: housing: PVC orange; Sealing: EPDM
• Material nut: stainless steel (1.4404 / 316L)
• Drag chain suitability: yes
• Drag chain suitability: bending radius for flexible use, min. 10 x cable diameter
, travel speed, max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² , bending cycles, > 1 Mio., torsional strain, ± 180 °/m

Displays / operating elements

• Display: switching status, 1 x LED, yellow
, operation, 1 x LED, green

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• : Connector: 1 x M8, straight; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm

Electrical connection

• Connection: Cable: 2 m, PVC, orange, Ø 4.9 mm; 3 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

• : Connector: 1 x M8, angled; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm

EVT207-00 — 05.11.2020 —
