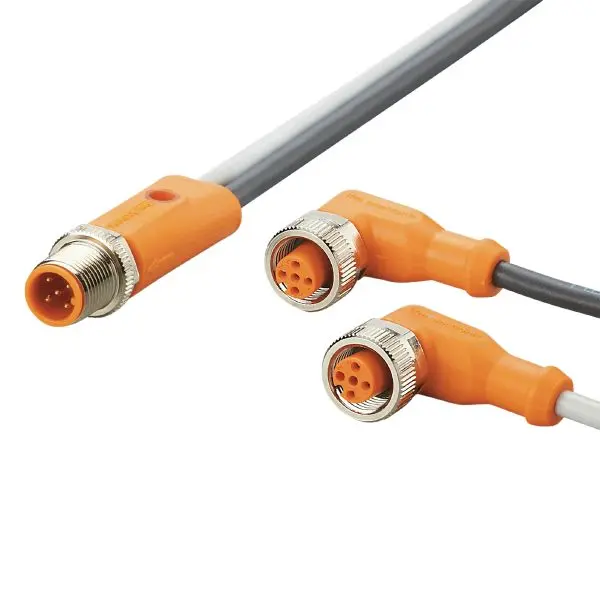

ifm Electronic EVC965 Verbindungskabel

Application

• Special feature: Halogen-free; Gold-plated contacts; Screened cable; Drag chain suitability
• Application: CAN bus

Electrical data

• Operating voltage [V]: 32 DC; (wires 4+5: 5 V)
• Max. current load total [A]: 4; (wires 4+5: 0,05 A)

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67; IP 68; IP 69K

Mechanical data

• Weight [g]: 232.15
• Moulded-body material: TPU
• Material nut: brass, nickel-plated
• Sealing material: FKM
• Drag chain suitability: yes
• Drag chain suitability: bending radius for flexible use, min. 10 x cable diameter
, travel speed, max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² , bending cycles, > 5 Mio., torsional strain, ± 180 °/m

Remarks

• Remarks: The CAN bus terminating resistor (120 Ω) is integrated in the M12 connector.
• Pack quantity: 1 pcs.

Electrical connection - plug

• : Connector: 1 x M12, straight; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection

• Connection: Cable: 2 m, PUR, Halogen-free, lilac, Ø 8.4 mm, shielded; RD / BK: 2 x 0.75 mm² (42 x Ø 0.15 mm ) + WH / BU: 2 x 0.5 mm² (19 x Ø 0.19 mm ) + screen: 1 x 0.75 mm² (42 x Ø 0.15 mm )

Electrical connection - socket

• : Connector: 1 x M12, angled; coding: A; Moulded body: TPU, black; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

EVC965-00 — 15.10.2020 —
