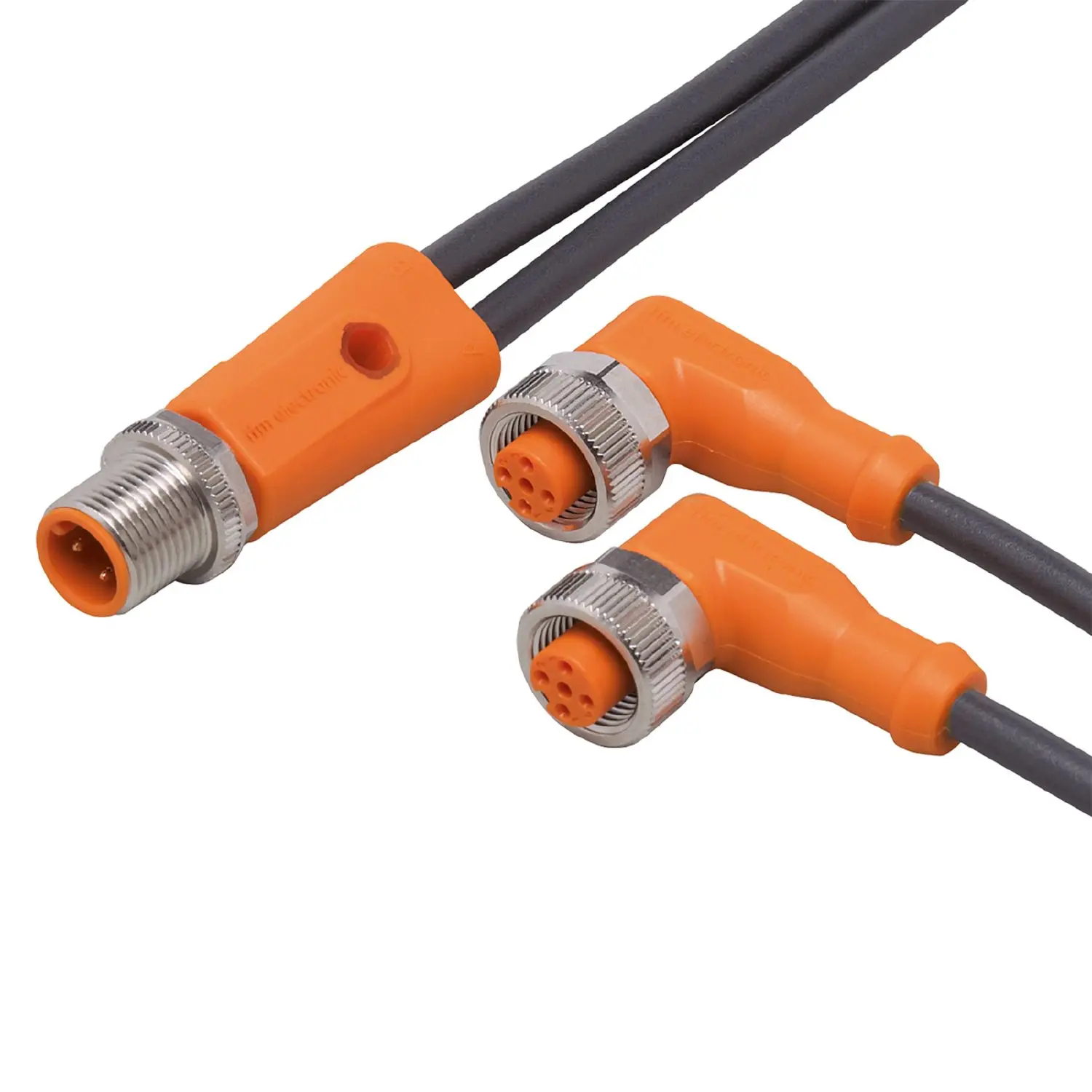

ifm Electronic EVC758 Y Verbindungskabel

Application

• Special feature: Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
• Free from silicone: yes

Electrical data

• Operating voltage [V]: < 60 AC/DC
• Protection class: II
• Max. current load total [A]: 4

Operating conditions

• Ambient temperature [°C]: -25...90
• Ambient temperature (moving) [°C]: -25...90
• Storage temperature [°C]: -25...55
• Storage humidity [%]: 10...100
• Other climatic conditions for storage according to stated class: 1K22/ DIN 60721-3-1
• Protection: IP 65; IP 67; IP 68; IP 69K

Mechanical data

• Weight [g]: 795.5
• Moulded-body material: TPU
• Material nut: brass, nickel-plated
• Sealing material: FKM
• Number of ports splitter box : 2
• Drag chain suitability: yes
• Drag chain suitability: bending radius for flexible use, min. 10 x cable diameter
, travel speed, max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² , bending cycles, > 5 Mio., torsional strain, ± 180 °/m

Remarks

• Notes: Please see the technical note under "Downloads"
• Pack quantity: 1 pcs.

Electrical connection

• : Cable: 12 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - plug

• Connection: Connector: 1 x M12, straight; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Electrical connection - socket

• : Connector: 2 x M12, angled; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
