ifm Electronic EVC05E PNP NPN Konverter

Application

• Special feature: Halogen-free; Gold-plated contacts; Drag chain suitability
• Compatible with paint: yes

Electrical data

• Operating voltage tolerance [%]: 10
• Operating voltage [V]: < 24 DC
• Protection class: II
• Max. current load total [A]: 0.1

Outputs

• Max. voltage drop switching output DC [V]: 2

Operating conditions

• Ambient temperature [°C]: -25...60
• Ambient temperature (moving) [°C]: -25...60
• Protection: IP 65; IP 67; IP 68; IP 69K

Tests / approvals

• MTTF [years]: 17562

Mechanical data

• Weight [g]: 492
• Dimensions [mm]: 26.5 x 15.5 x 36.5
• Materials: housing: TPU black; Sealing: FKM
• Material nut: brass, nickel-plated
• Drag chain suitability: yes
• Drag chain suitability: bending radius for flexible use, min. 10 x cable diameter
, travel speed, max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² , bending cycles, > 5 Mio., torsional strain, ± 180 °/m

Remarks

• Remarks: for sensors to IEC 60947-5-2 with normally open operation
• Notes: Please see the technical note under "Downloads"
• Pack quantity: 1 pcs.

Electrical connection

• : Cable: 15 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

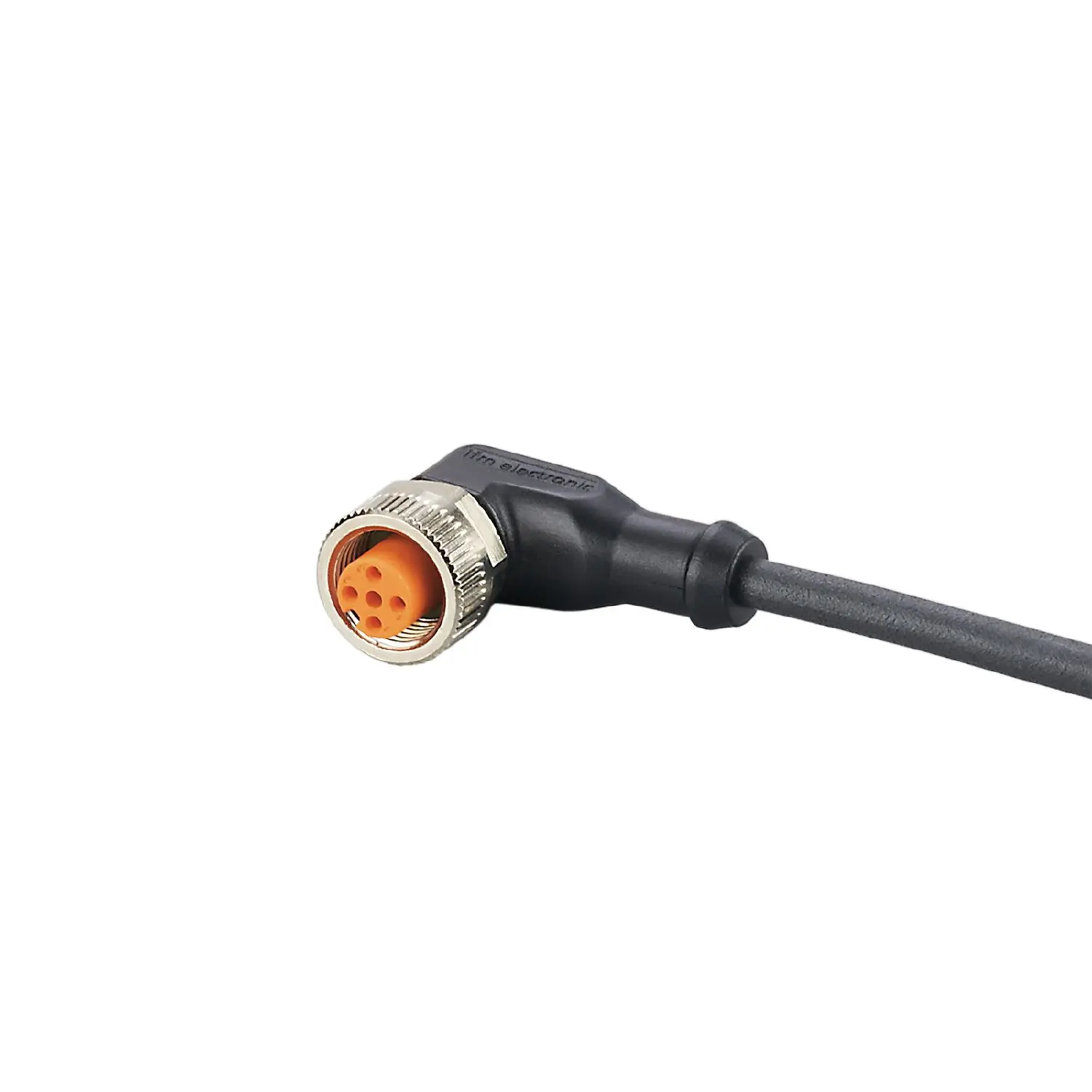

• Connection: Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

EVC05E-01 — 05.11.2020 —
