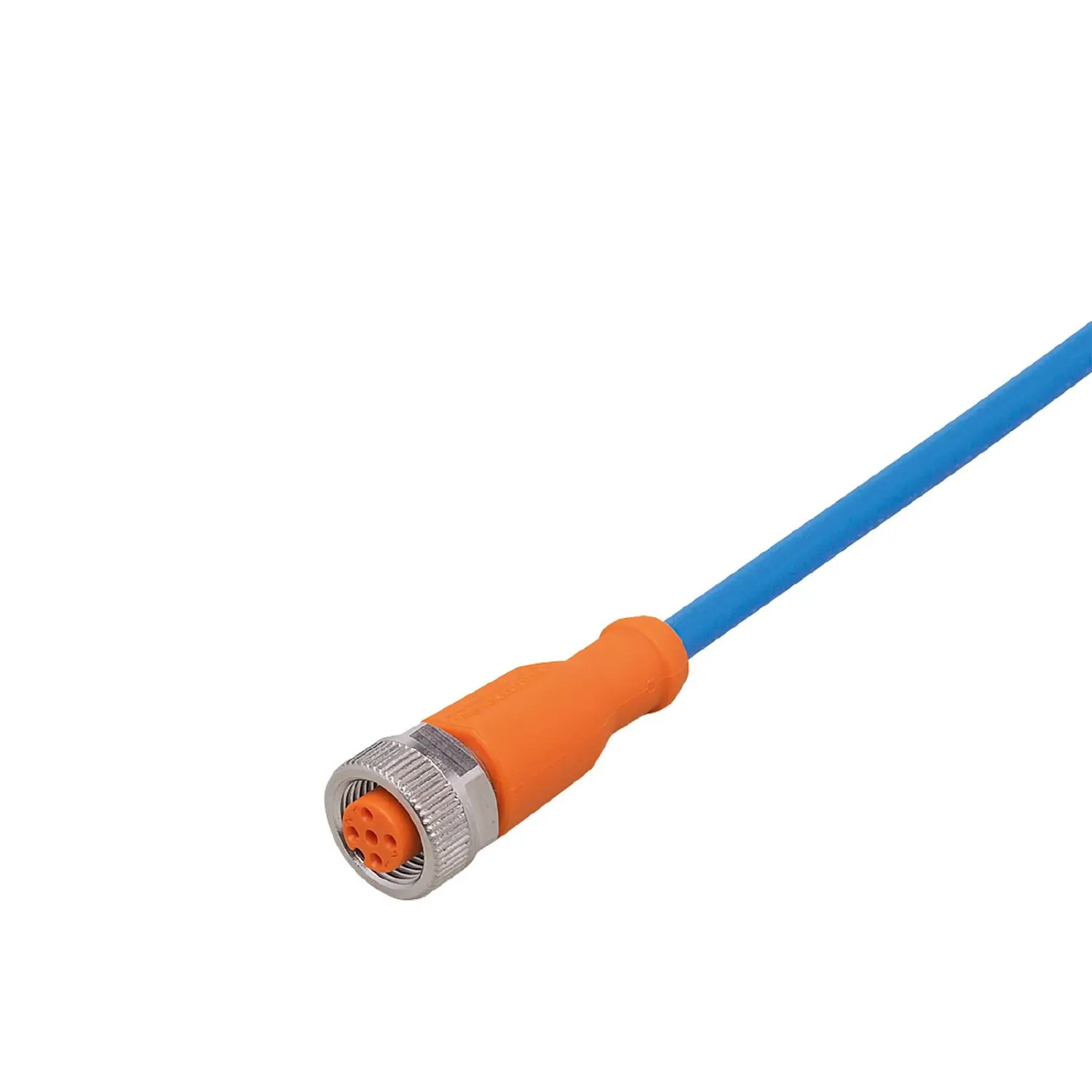

ifm Electronic ENC16A Anschlusskabel mit Buchse

Application

• Special feature: Free from silicone; Halogen-free; Gold-plated contacts
• Free from silicone: yes
• Compatible with paint: yes

Electrical data

• Operating voltage [V]: < 30 DC
• Protection class: II
• Max. input power [mW]: group II: 1000; group III: 1000
• Max. current load total [A]: 1

Operating conditions

• Ambient temperature [°C]: -25...85
• Note on ambient temperature: for use in hazardous areas: ambient temperature in accordance with unit marking
• Protection: IP 67; (when used outside the hazardous area: IP 68 / IP 69K)

Tests / approvals

• Approval: BVS 11 ATEX E 009 X; IECEx BVS 11.0002 X
• ATEX marking: II 1G Ex ia IIB T6 Ga Ta: -25...75°C
• : II 2G Ex ia IIC T6 Gb Ta: -25...75°C
• : II 1G Ex ia IIB T5 Ga Ta: -25...85°C
• : II 2G Ex ia IIC T5 Gb Ta: -25...85°C
• : II 1D Ex ia IIIB T200 85°C Da Ta: -25...75°C
• : II 1D Ex ia IIIB T200 95°C Da Ta: -25...85°C
• : II 1D Ex ia IIIC T200 70°C Da Ta: -20...60°C

Safety classification

• Max. internal capacitance [nF]: 5
• Max. internal inductance [µH]: 100

Mechanical data

• Weight [g]: 1737.5
• Dimensions [mm]: 15.5 x 15.5 x 45
• Materials: housing: TPU orange; Sealing: FKM
• Material nut: brass, nickel-plated

Remarks

• Remarks: Special conditions for safe operation apply for use in hazardous areas.
, Observe the corresponding notes in the operating instructions (Ex protection related part).
• Pack quantity: 1 pcs.

Electrical connection

• : Cable: 50 m, PUR, Halogen-free, blue, Ø 4.9 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm )

Electrical connection - socket

• Connection: Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
