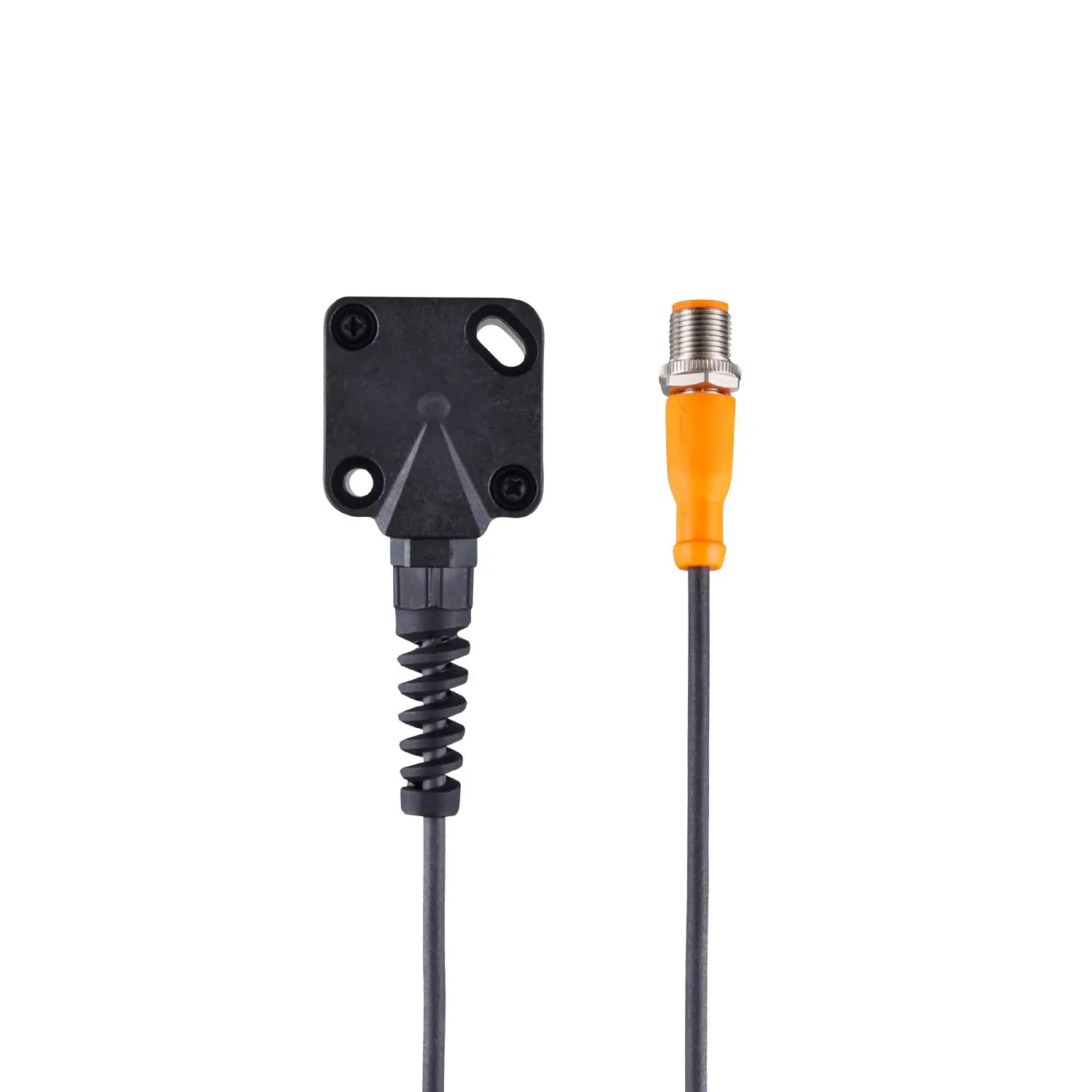

ifm Electronic EC2060 Neigungssensor

Product characteristics

• Number of measurement axes: 1
• Angular range [°]: ± 20

Application

• Function principle: static

Electrical data

• Operating voltage [V]: 11...15 DC
• Current consumption [mA]: < 35
• Protection class: III
• Reverse polarity protection: yes

Inputs / outputs

• Number of inputs and outputs: Number of analogue outputs: 1

Outputs

• Output signal: analogue signal
• Number of analogue outputs: 1
• Analogue current output [mA]: 4...20
• Max. load [Ω]: 400
• Overload protection: yes

Measuring/setting range

• Number of measurement axes: 1
• Angular range [°]: ± 20

Accuracy / deviations

• Accuracy [°]: <±7; (the zero point error can be compensated for by adjusting the unit by ± 4°)
• Repeatability [°]: 0,1

Operating conditions

• Ambient temperature [°C]: -30...85
• Storage temperature [°C]: -30...85
• Protection: IP 67

Tests / approvals

• MTTF [years]: 991

Mechanical data

• Weight [g]: 189.9
• Dimensions [mm]: 40.5 x 40.5 x 52.2
• Materials: housing: PPO
• Tightening torque [Nm]: 1.8
• Installation position: vertical

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• : Cable: 0.2 m
• : Connector: 1 x M12; coding: A
