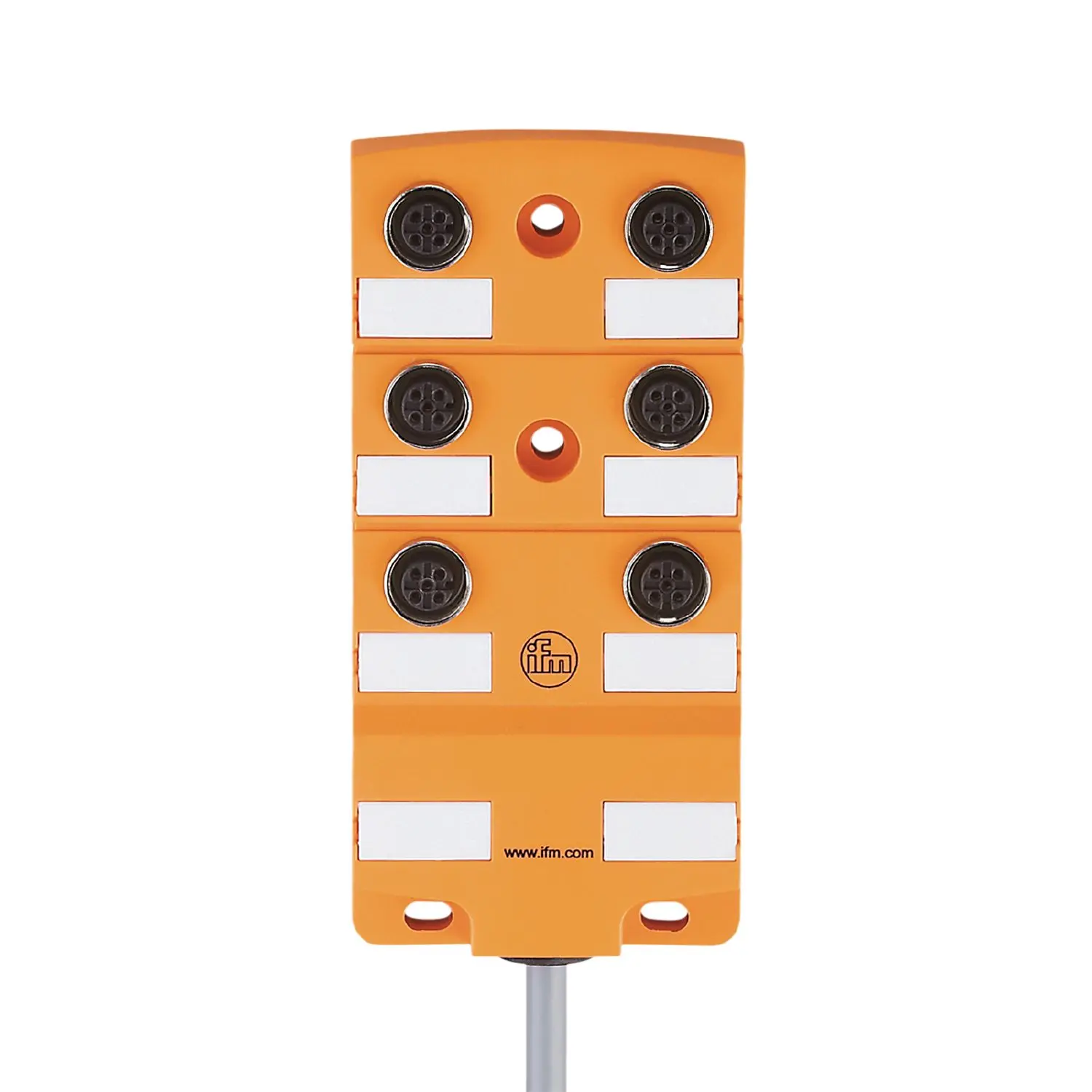

ifm Electronic EBC043 Zentralverteiler

Application

• Special feature: Gold-plated contacts

Electrical data

• Operating voltage [V]: < 30 DC; ("supply class 2" to cULus)
• Max. current load per module/slot [A]: 4; (per pin: 2; per group: 8)
• Max. current load total [A]: 12

Operating conditions

• Ambient temperature [°C]: -25...40
• Ambient temperature (moving) [°C]: -5...60
• Protection: IP 67

Tests / approvals

• UL approval: Enclosure type, Type 1

Mechanical data

• Weight [g]: 880
• Dimensions [mm]: 22 x 60 x 125
• Materials: PA
• Moulded-body material: PA
• Number of ports splitter box : 6
• Connector type: M12

Accessories

• Items supplied: labels: 6

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• : Cable: 10 m, PVC, black, Ø 6.3 mm; 5 x 0.5 mm²

Electrical connection - slot

• Connection: Connector: 6 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

EBC043-01 — 05.11.2020 —
