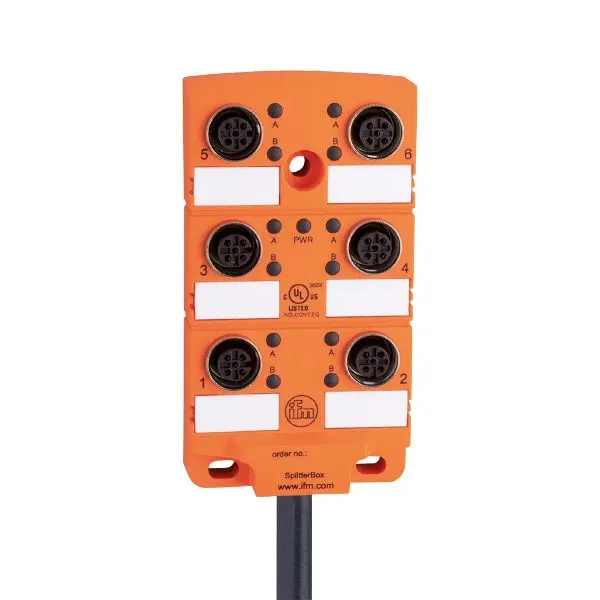

ifm Electronic EBC042 Zentralverteiler

Application

• Special feature: Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
• Free from silicone: yes

Electrical data

• Operating voltage [V]: 10...30 DC; ("supply class 2" to cULus)
• Protection class: II
• Max. current load per module/slot [A]: 4
• Max. current load total [A]: 12

Outputs

• Electrical design: PNP

Operating conditions

• Ambient temperature [°C]: -25...80
• Ambient temperature (moving) [°C]: -5...60
• Protection: IP 67; IP 68

Mechanical data

• Weight [g]: 2261
• Dimensions [mm]: 22 x 54 x 127
• Materials: PA
• Moulded-body material: PA
• Number of ports splitter box : 8
• Connector type: M12
• Drag chain suitability: yes
• Drag chain suitability: bending radius for flexible use, min. 10 x cable diameter
, bending cycles, > 2 Mio.

Displays / operating elements

• Display: switching status, 16 x LED, yellow
, operation, 1 x LED, green

Accessories

• Items supplied: Protective caps: 2
, labels: 8

Remarks

• Pack quantity: 1 pcs.

Electrical connection

• : Cable: 15 m, PUR, Halogen-free, black, Ø 9.7 mm; 16 x 0.34 mm² (63 x Ø 0.1 mm ) + 3 x 1.0 mm² (127 x Ø 0.1 mm )

Electrical connection - slot

• Connection: Connector: 8 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

EBC042-01 — 05.11.2020 —
