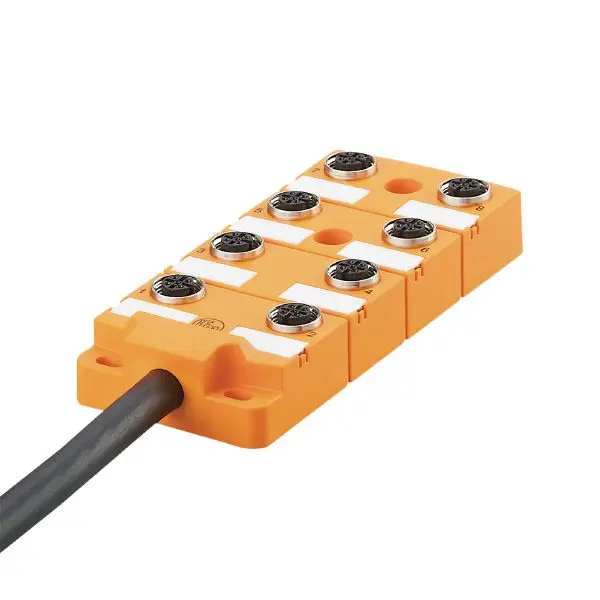

ifm Electronic EBC002 Zentralverteiler

Application

• Special feature: Free from silicone; Gold-plated contacts
• Free from silicone: yes

Electrical data

• Operating voltage [V]: 10...30 DC; ("supply class 2" to cULus)
• Max. current load per module/slot [A]: 4
• Max. current load total [A]: 10

Outputs

• Electrical design: PNP

Operating conditions

• Ambient temperature [°C]: -25...80
• Protection: IP 67

Tests / approvals

• UL approval: Enclosure type, Type 1

Mechanical data

• Weight [g]: 224.5
• Dimensions [mm]: 33 x 60 x 118.2
• Materials: PA
• Moulded-body material: PA
• Number of ports splitter box : 4
• Connector type: M12

Displays / operating elements

• Display: switching status, 4 x LED, yellow
, operation, 1 x LED, green

Accessories

• Items supplied: Protective caps: 2
, labels: 4

Remarks

• Pack quantity: 1 pcs.

Electrical connection - Connection

• Connection: Connector: 1 x M23; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

Electrical connection - slot

• : Connector: 4 x M12; coding: A; Moulded body: PA; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm

EBC002-00 — 05.11.2020 —
