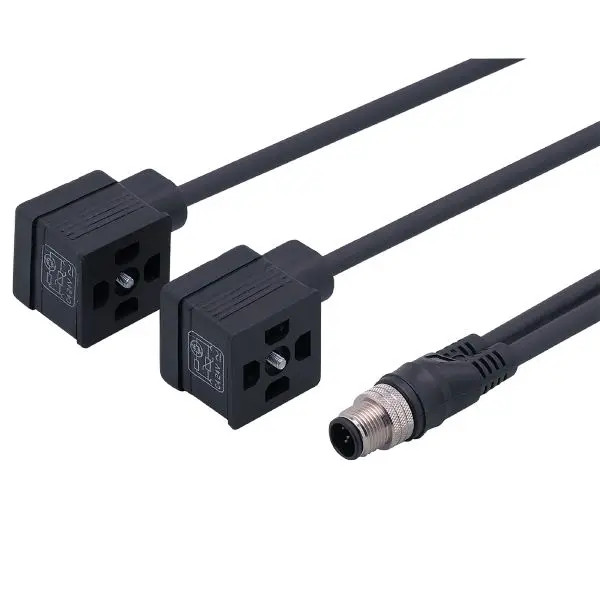

ifm Electronic E70203 Y Verbindungskabel mit Ventilstecker

Application

• Special feature: Halogen-free

Electrical data

• Operating voltage [V]: 10...30 DC
• Overvoltage protection: yes; (VDR)

Operating conditions

• Ambient temperature [°C]: -25...90
• Protection: IP 65

Mechanical data

• Weight [g]: 183.5
• Materials: TPU
• Moulded-body material: TPU
• Material nut: brass, nickel-plated

Displays / operating elements

• Display: switching status, 2 x LED, yellow

Accessories

• Items supplied: screw
, panel for labelling

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• Connection: Connector: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated

Electrical connection

• : Cable: 1 m, PUR, Halogen-free, black, Ø 4.8 mm; 3 x 0.5 mm² (16 x Ø 0.2 mm )

Electrical connection - socket

• : Connector: 2 x valve type A DIN, angled; Moulded body: TPU; Locking: brass, nickel-plated

E70203-01 — 07.05.2010 —
