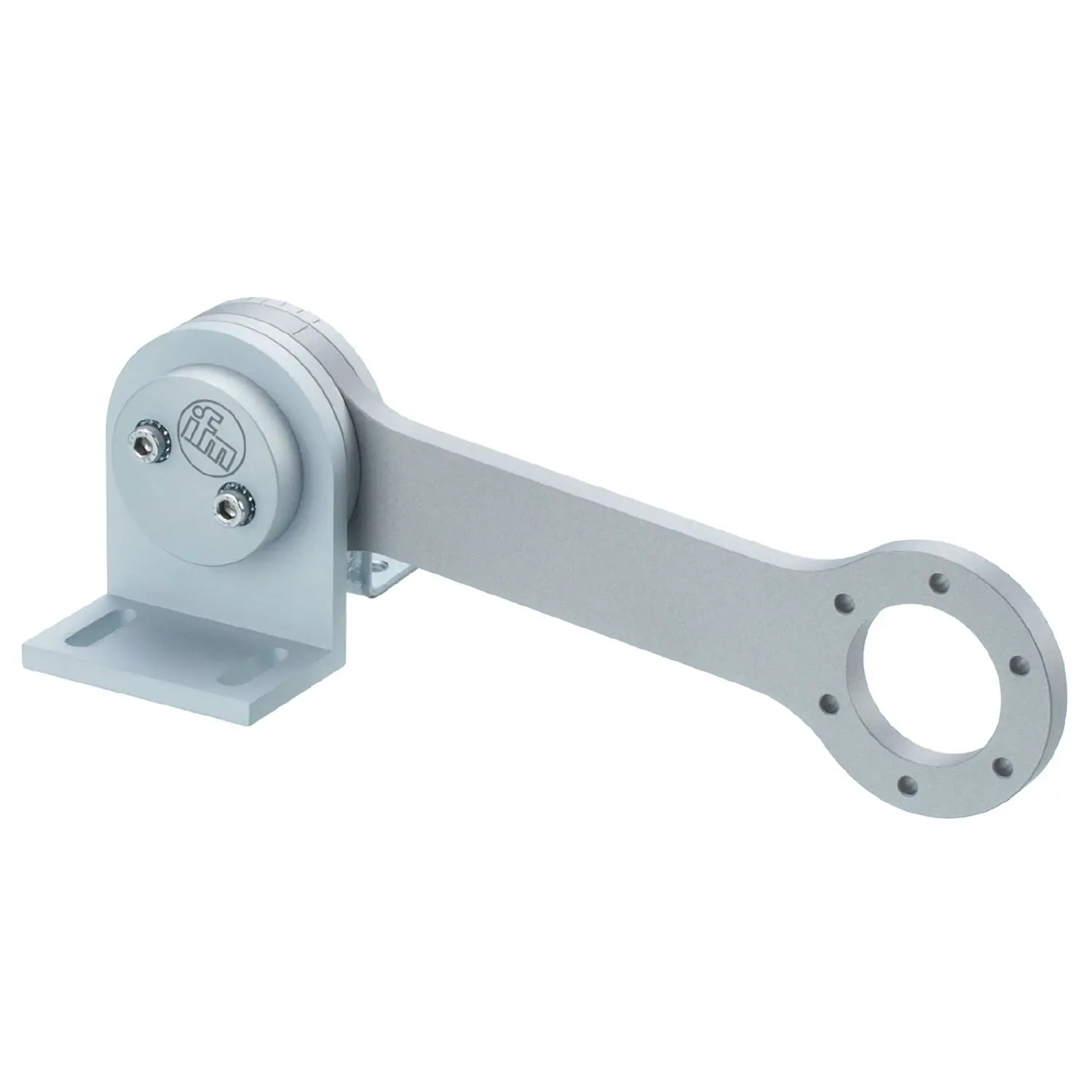

ifm Electronic E61446 Federarm für Drehgeber

Application

• Design: for encoder with clamp flange

Operating conditions

• Ambient temperature [°C]: -30...60

Mechanical data

• Weight [g]: 717.1
• Installation instruction: can be mounted from both sides
• Dimensions [mm]: 230 x 65.9 x 75
• External diameter [mm]: 340
• Materials: aluminium anodised; Spring: stainless steel (1.4310 / 301)
• Tightening torque [Nm]: 4.3
• Max. angular displacement [°]: 45
• Activation force [N]: 5...20

Remarks

• Remarks: With scale
• Pack quantity: 1 pcs.
