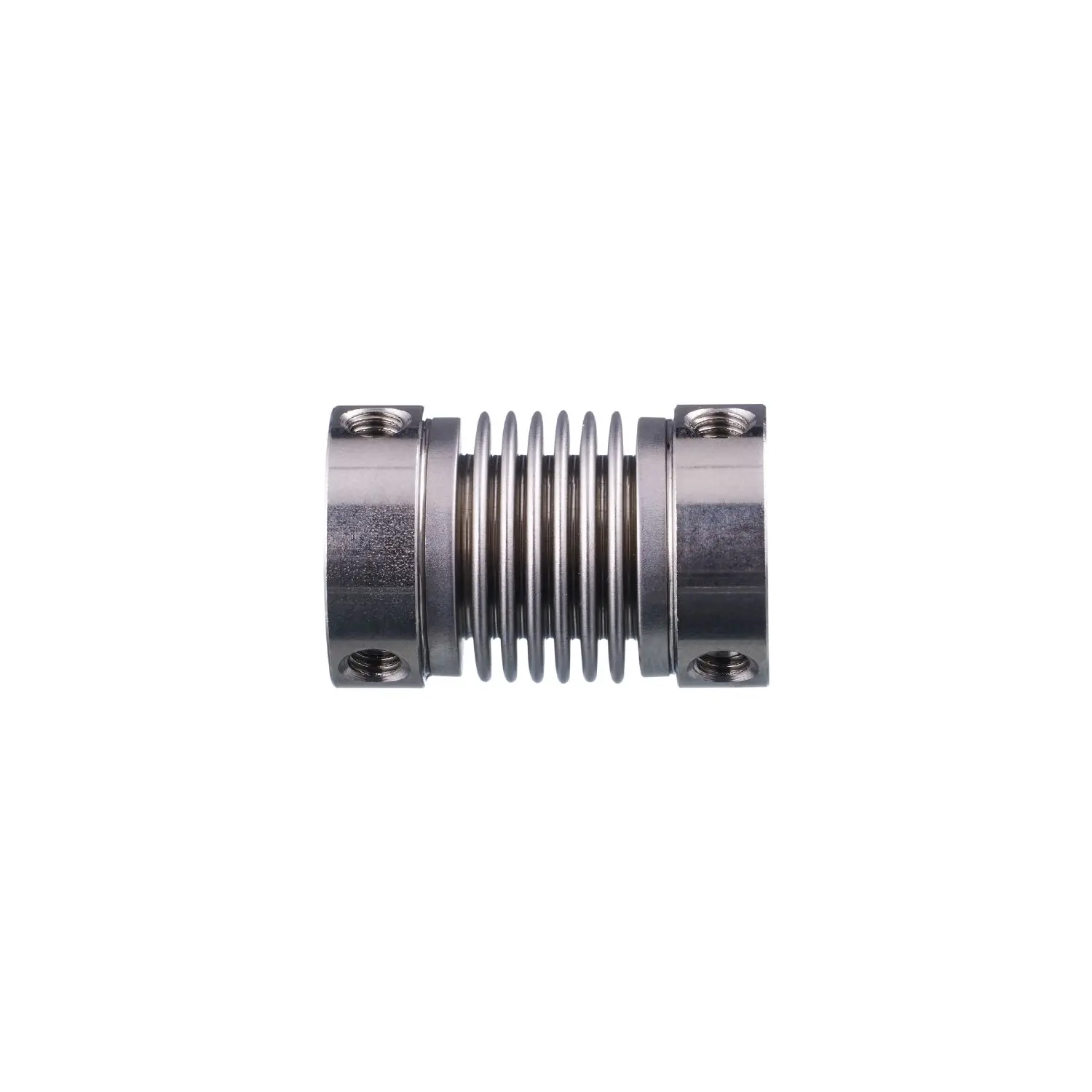

ifm Electronic E60216 Balgkupplung

Mechanical data

• Weight [g]: 33
• Dimensions [mm]: Ø 20 / L = 29
• Materials: flange: 1.4404 (V4A/316L); Bellow: 1.4571 (V4A/316Ti)
• Tightening torque [Nm]: tightening torque screws: 150 Ncm
• External diameter D [mm]: 20
• Inside diameter 1 [mm]: 10
• Inside diameter 2 [mm]: 10
• Depth of the clamping hub [mm]: 6.4
• Clamping screw [mm]: M4 x 4 - ISO 4029 (4x)
• Length [mm]: 29
• Max. revolution, mechanical [U/min]: 10000
• Max. axial shaft misalignment [mm]: ± 0,4
• Max. radial shaft misalignment [mm]: ± 0,25
• Max. angular displacement [°]: ± 4,0

Remarks

• Remarks: The data indicated apply to couplings with the above hub borings at an ambient temperature of 23 °C.
, The values of radial, angular and axial displacement are maximum values which must not reach their maximum simultaneously while in operation.
• Pack quantity: 1 pcs.

E60216-00 — 23.01.2023 —
