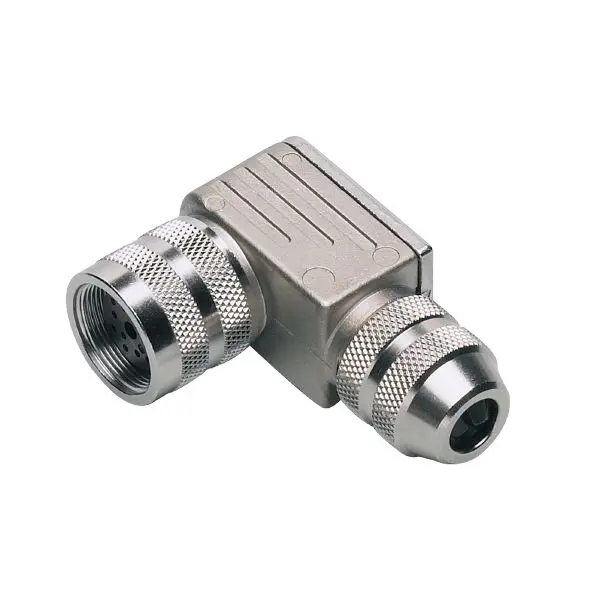

ifm Electronic E60193 Stegkupplung

Mechanical data

• Weight [g]: 18.6
• Dimensions [mm]: Ø 22 / L = 24
• Materials: PA 6.6; stainless steel (1.4404 / 316L)
• Tightening torque [Nm]: tightening torque screws: 120 Ncm
• External diameter D [mm]: 22
• Inside diameter 1 [mm]: 10
• Inside diameter 2 [mm]: 10
• Depth of the clamping hub [mm]: 6.4
• Clamping screw [mm]: M4 x 6 - ISO 4029 (2x)
• Length [mm]: 24
• Max. revolution, mechanical [U/min]: 10000
• Max. axial shaft misalignment [mm]: ± 0,2
• Max. radial shaft misalignment [mm]: ± 0,3
• Max. angular displacement [°]: ± 3,0

Remarks

• Remarks: The data indicated apply to couplings with the above hub borings at an ambient temperature of 23 °C.
, The values of radial, angular and axial displacement are maximum values which must not reach their maximum simultaneously while in operation.
• Pack quantity: 1 pcs.

E60193-00 — 23.01.2023 —
