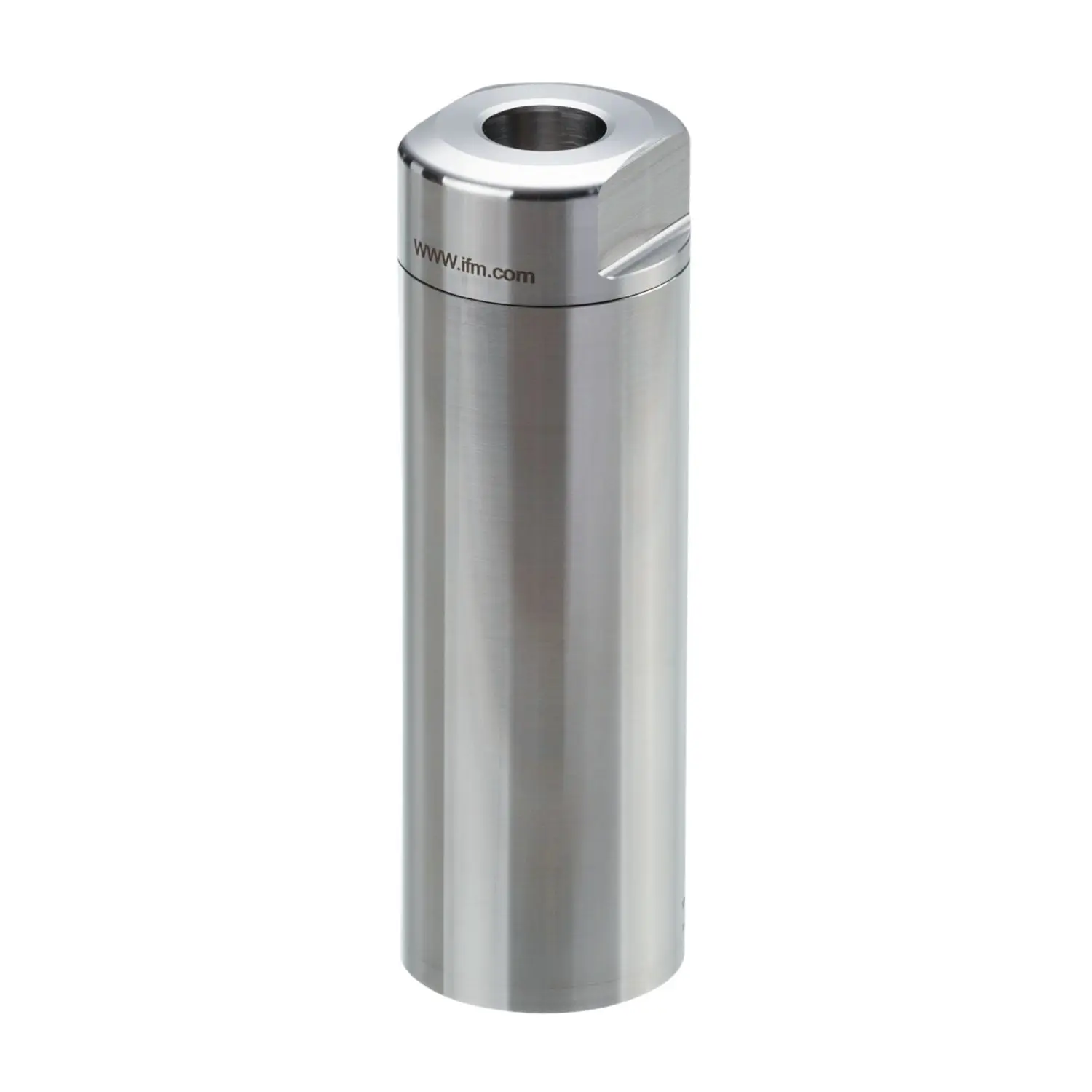

ifm Electronic E43414 REAR MOUNT ADAPTER

Application

• Design: adapter for rear sensor installation
• Pressure rating [bar]: 50
• Note on pressure rating: for the connection sensor - adapter

Mechanical data

• Weight [g]: 534.5
• Materials: Adapter: stainless steel (1.4435 / 316L); weld-on pipe: stainless steel (1.4571/316Ti ); Sealing: FKM
• Sensor connection: G 1/2 sealing cone
• Process connection: Ø 38 mm
• Surface characteristics Ra/Rz of the wetted parts: 0.8 / 4

Remarks

• Remarks: due to the adjustment of the ambient temperature of the installed sensor to the medium temperature, the medium temperature must not exceed the specified data for the ambient temperature of the installed sensor.
• Pack quantity: 1 pcs.

E43414-00 — 27.09.2022 —
