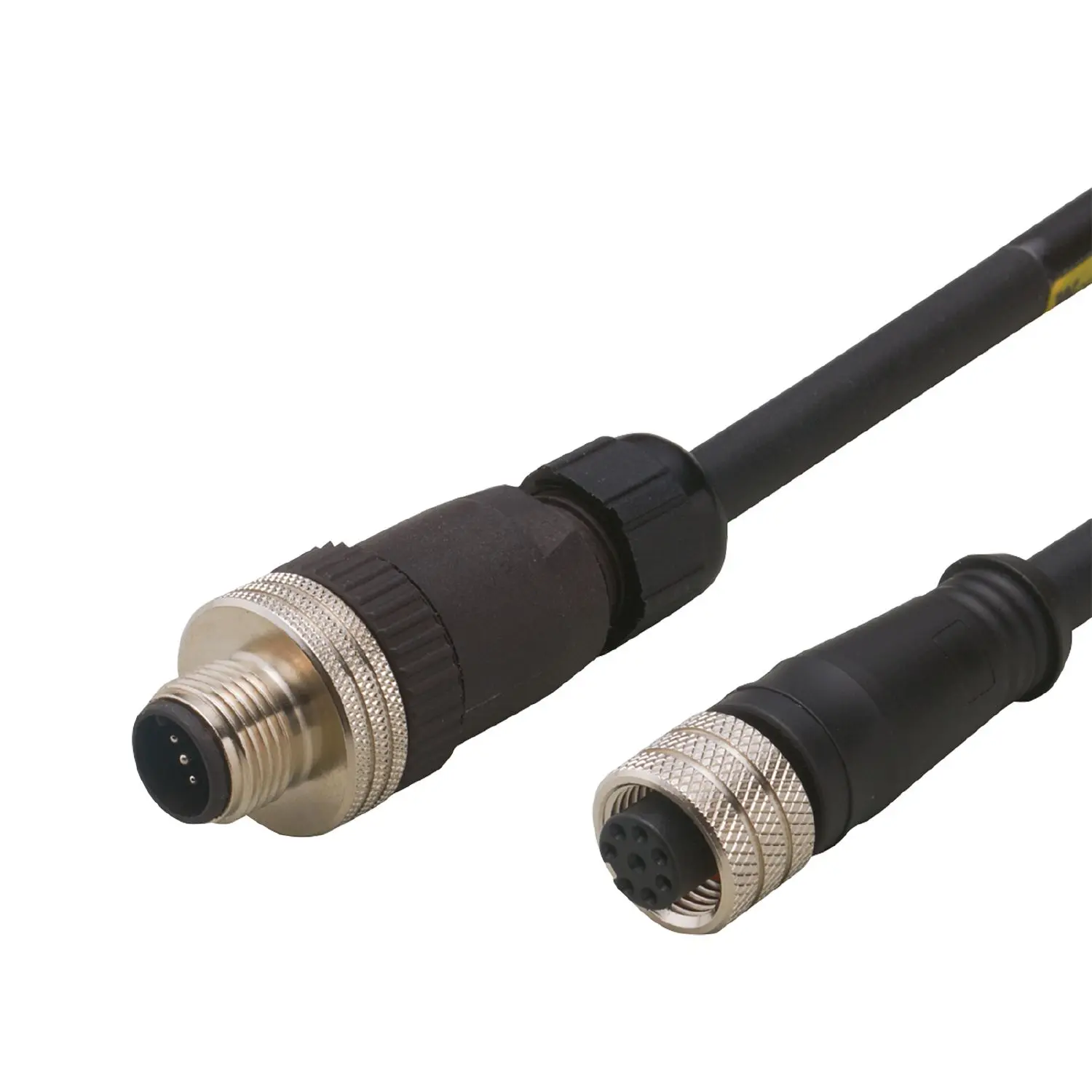

ifm Electronic E43332 Verbindungskabel

Application

• Special feature: Gold-plated contacts
• Design: CAN adapter cable

Electrical data

• Operating voltage [V]: < 30 AC / < 36 DC
• Max. current load total [A]: 4

Operating conditions

• Ambient temperature [°C]: -30...80
• Protection: IP 68

Mechanical data

• Weight [g]: 48.8
• Dimensions [mm]: 20 x 20 x 55
• Materials: PUR
• Moulded-body material: PUR
• Material nut: brass, nickel-plated

Remarks

• Pack quantity: 1 pcs.

Electrical connection - plug

• : Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated

Electrical connection

• Connection: Cable: 0.15 m, PUR / PVC, black, Ø 6.8 mm; 4 x 0.25 mm²

Electrical connection - socket

• : Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated

E43332-00 — 26.11.2013 —
