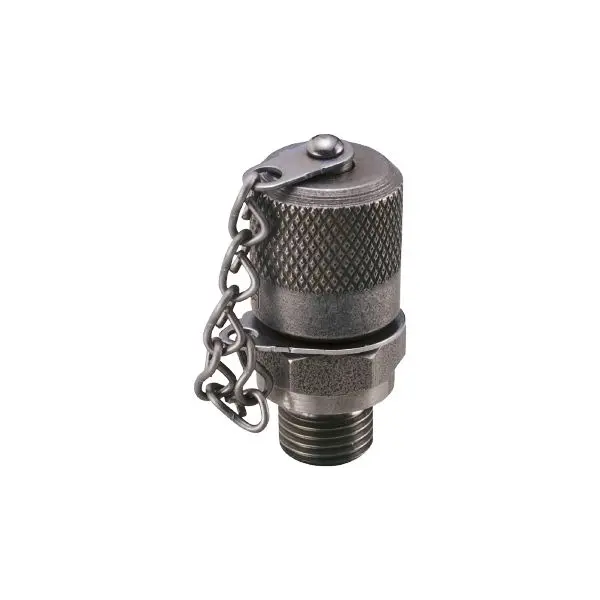

ifm Electronic E43330, Schraubkupplung mit Blende

Application

• Pressure rating [bar]: 630

Operating conditions

• Ambient temperature [°C]: -10...60

Tests / approvals

• Pressure Equipment Directive: A possible classification to PED depends on the application and has to be carried out by the user / operator.
• Safety instructions: The compatibility between medium and product material has to be checked in all applications.

Mechanical data

• Weight [g]: 76.3
• Materials: socket housing: steel (1.0718); surface characteristics: zinc / nickel grey; Sealing: NBR
• Sensor connection: G 1/4
• Process connection: M16 x 2 Minimess

Remarks

• Pack quantity: 1 pcs.

E43330-00 — 20.11.2013 —
