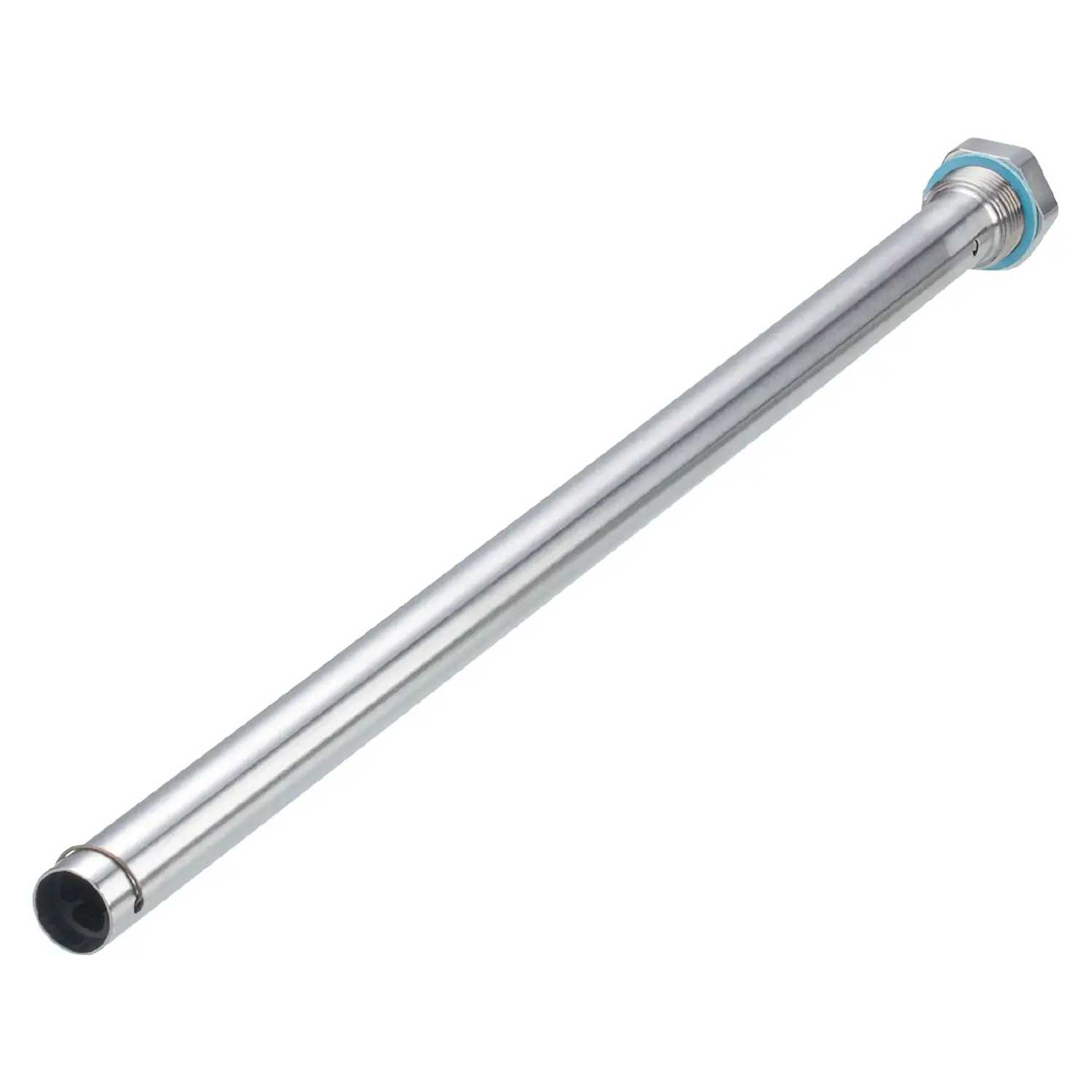

ifm Electronic E43245 Koaxialrohr für Füllstandsensoren

Application

• Design: Version without holes, for level sensors, LR
• Medium temperature [°C]: -40...200
• Pressure rating [bar]: 16
• Vacuum resistance [mbar]: -1000

Mechanical data

• Weight [g]: 600
• Materials: Coaxial pipe: stainless steel (1.4301 / 304); Sealing: NBR reinforced fibre; Centring piece: PPS reinforced fibre; fixing bracket: stainless steel (1.4310 / 301)
• Sensor connection: threaded connection G 3/4 internal thread
• Process connection: threaded connection G 3/4 external thread
• Length L [mm]: 1000

Accessories

• Items supplied: Sealing: 1
• Accessories (optional): Centring piece for coaxial pipes: 1, E43222

Remarks

• Pack quantity: 1 pcs.

E43245-00 — 06.11.2023 —
