ifm Electronic E40460 Prozessadapter für kleine Durchflussmengen

Application

• Design: for flow sensors SID, SF5
• Flow range [l/min]: 0.2...2; ((SI1xxx); 0.2...3 (SI5xxx); factory setting with water)
• Application: for industrial applications
• Media: liquids and gases
• Medium temperature [°C]: -25...60
• Pressure rating [bar]: 16

Mechanical data

• Weight [g]: 324.55
• Materials: PP-H
• Sensor connection: M18 x 1,5
• Process connection: G 1/4

Accessories

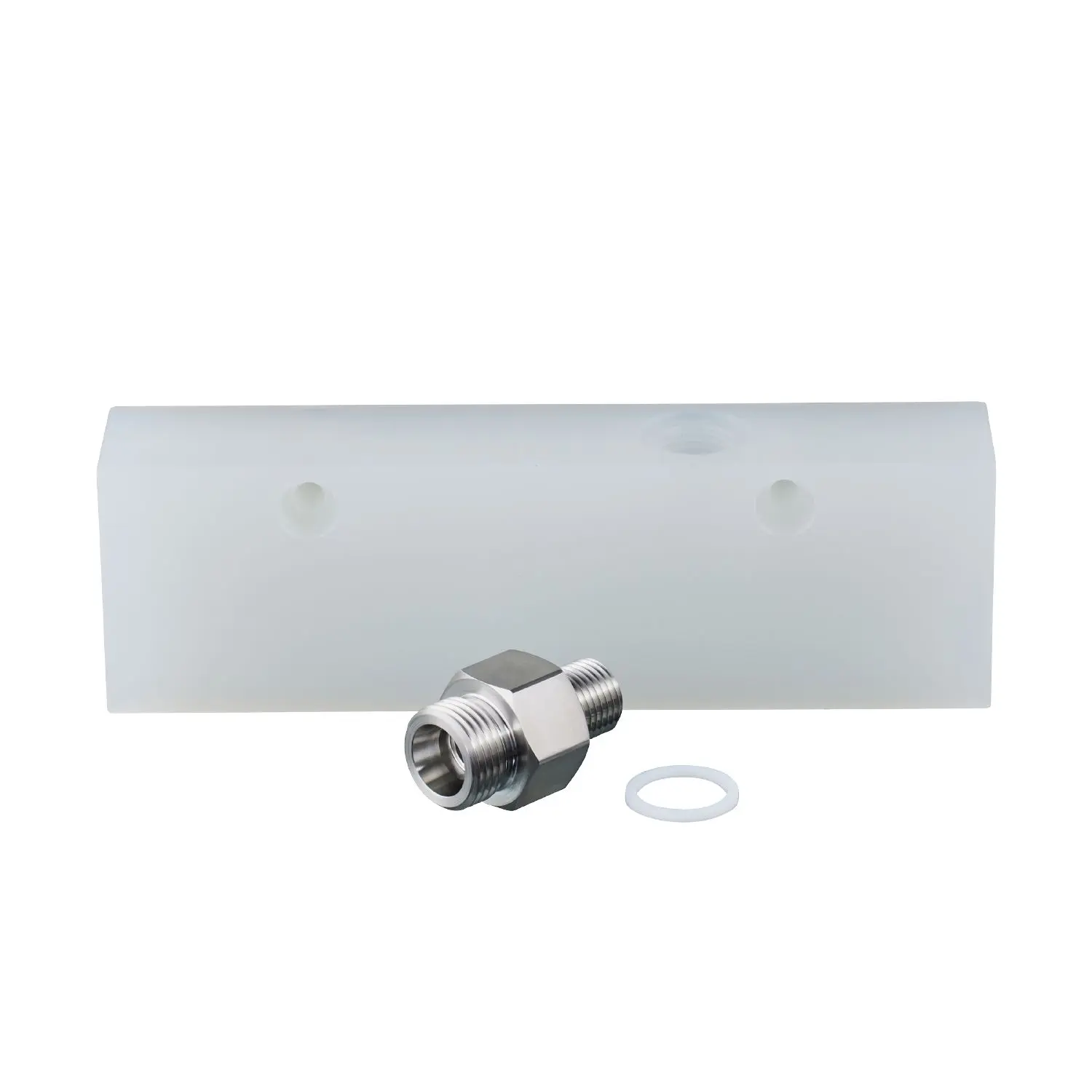

• Items supplied: Adapter: 1 x G1/4 BSPP, E40176
, sealings: 1, PTFE

Remarks

• Remarks: Can only be used in combination with the flow sensor’s relative operating mode.
• Pack quantity: 1 pcs.

E40460-00 — 20.07.2022 —
