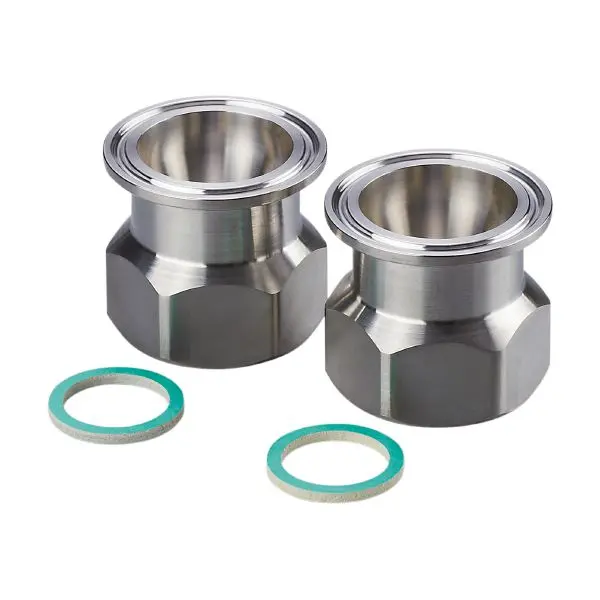

ifm Electronic E40253, Einbauadapter für Strömungssensoren

Application

• Design: for flow sensors, Typ SM8, Typ SU8
• Application: for industrial applications; hygienic systems
• Media: Liquids
• Pressure rating [bar]: 16

Tests / approvals

• Pressure Equipment Directive: A possible classification to PED depends on the application and has to be carried out by the user / operator.
• Safety instructions: The compatibility between medium and product material has to be checked in all applications.

Mechanical data

• Weight [g]: 662.5
• Materials: Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 23,5 x 30 x 3 mm
• Sensor connection: G 1
• Process connection: Clamp DN40 (1,5") DIN 32676 (ISO 2852)

Accessories

• Items supplied: O-rings: 2

Remarks

• Pack quantity: 2 pcs.

E40253-00 — 23.04.2015 —
