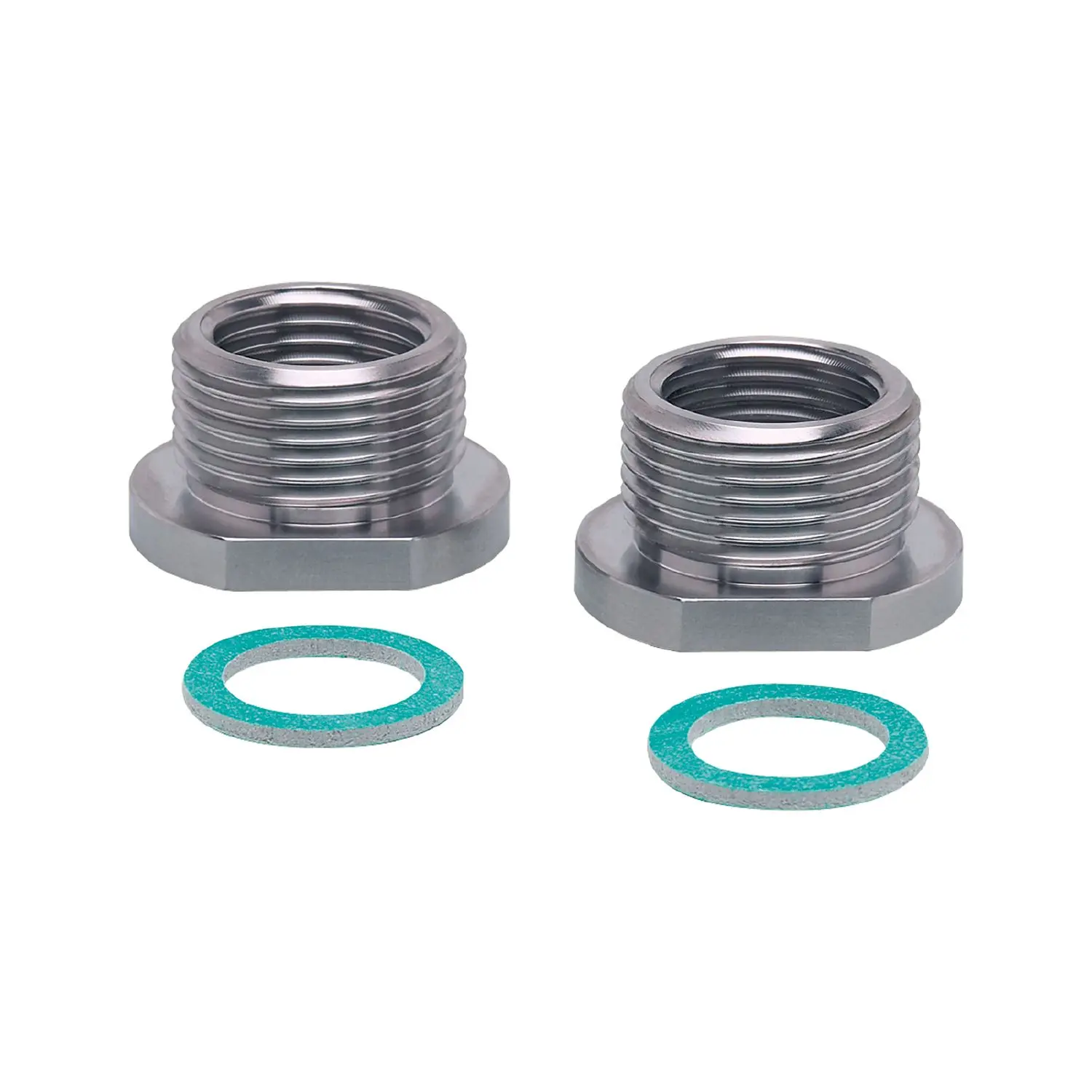

ifm Electronic E40189 Einbauadapter für Strömungssensoren

Application

• Design: for flow sensors SM6

Tests / approvals

• Pressure Equipment Directive: A possible classification to PED depends on the application and has to be carried out by the user / operator.
• Safety instructions: The compatibility between medium and product material has to be checked in all applications.

Mechanical data

• Weight [g]: 86
• Materials: Adapter: stainless steel (1.4404 / 316L); O-ring: FKM 24 x 2 mm; Gasket: Centellen
• Sensor connection: G 1/2
• Process connection: threaded connection G 3/4 external thread
• Sealing: flat seal

Accessories

• Items supplied: O-rings: 2
, O-rings: 2

Remarks

• Pack quantity: 2 pcs.

E40189-00 — 23.05.2007 —
