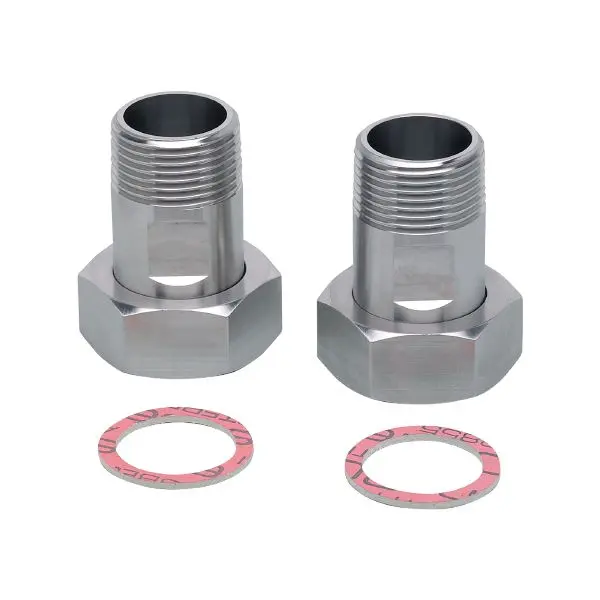

ifm Electronic E40152, Einbauadapter für Strömungssensoren

Application

• Design: for flow sensors Typ SM8, SU8
• Pressure rating [bar]: 16

Tests / approvals

• Pressure Equipment Directive: A possible classification to PED depends on the application and has to be carried out by the user / operator.
• Safety instructions: The compatibility between medium and product material has to be checked in all applications.

Mechanical data

• Weight [g]: 313.5
• Materials: brass
• Sensor connection: G 1
• Process connection: threaded connection R 1/2

Accessories

• Items supplied: sealings: 2, Centellen

Remarks

• Pack quantity: 2 pcs.

E40152-01 — 06.03.2003 —
