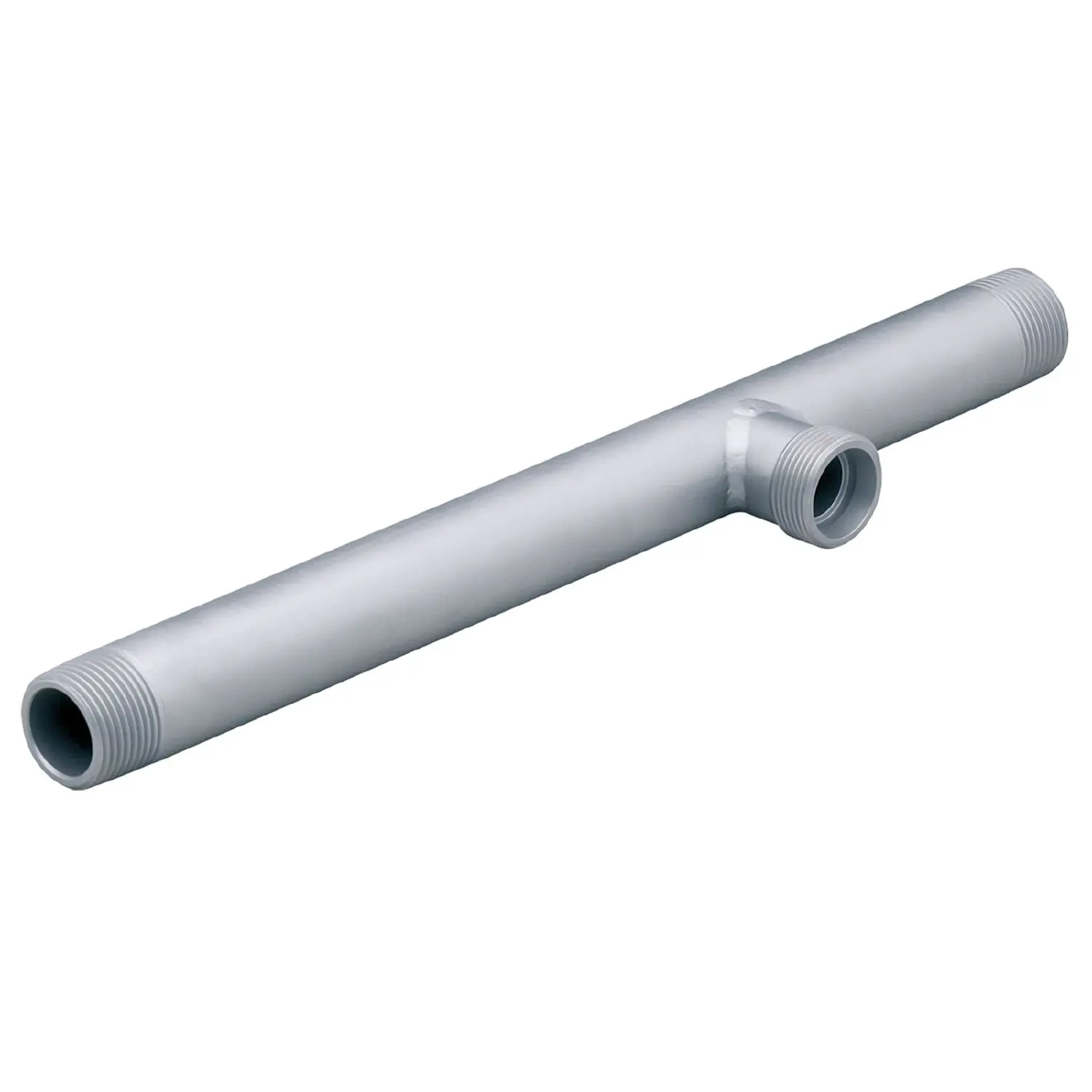

ifm Electronic E40139 T Stück

Application

• Design: for sensors and adapters with process connection M26x1,5
• Flow range [l/min]: 0...40
• Application: for industrial applications
• Media: liquids and gases
• Pressure rating [bar]: 30

Tests / approvals

• Pressure Equipment Directive: A possible classification to PED depends on the application and has to be carried out by the user / operator.
• Safety instructions: The compatibility between medium and product material has to be checked in all applications.

Mechanical data

• Weight [g]: 1265
• Materials: stainless steel (1.4571/316Ti )
• Sensor connection: M26 x 1,5
• Process connection: threaded connection R 1

Accessories

• Accessories (optional): Adapter: 1 x M18 x 1,5, for direct connection of flow sensors, E40104

Remarks

• Pack quantity: 1 pcs.

E40139-00 — 11.11.2014 —
