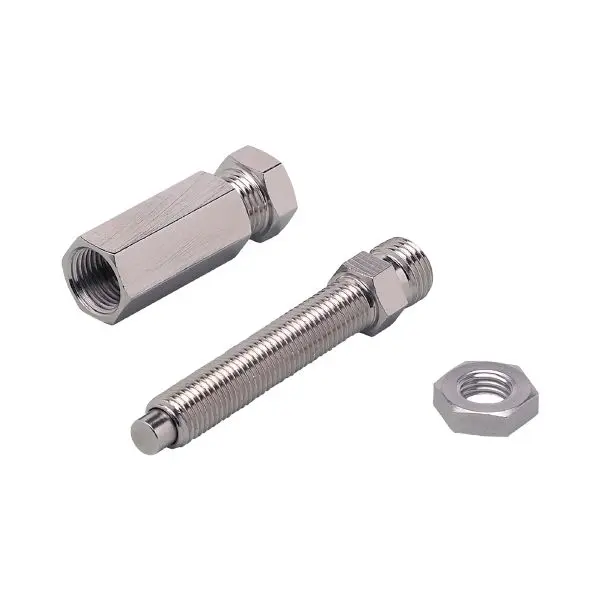

ifm Electronic E37210 Schutzrohr für Temperatursensoren

Application

• Design: for temperature sensors EL = 100 mm
• Pressure rating [bar]: 400

Accuracy / deviations

• Max. permissible flow velocity [m/s]: 45

Mechanical data

• Weight [g]: 180.5
• Materials: stainless steel (1.4404 / 316L)
• Sensor connection: 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT
• Process connection: 1/2" NPT
• Installation length EL [mm]: 74
• Bore length BL [mm]: 101.6

Remarks

• Pack quantity: 1 pcs.

E37210-00 — 10.09.2014 —
