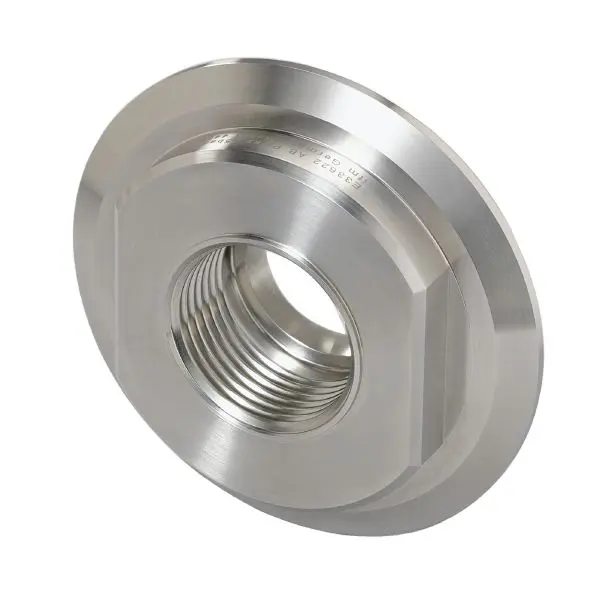

ifm Electronic E33722, Prozessadapter Varivent

Application

• Pressure rating [bar]: 25

Tests / approvals

• Pressure Equipment Directive: A possible classification to PED depends on the application and has to be carried out by the user / operator.
• Safety instructions: The compatibility between medium and product material has to be checked in all applications.

Mechanical data

• Weight [g]: 481
• Materials (wetted parts): stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4
• Sensor connection: G 1 internal thread Aseptoflex Vario
• Process connection: Varivent Form N, DN40...DN150 (1,5...6"), Ø 68 mm
• Sealing: metal to metal
• Hygienic equipment class to DIN 11866: H4

Remarks

• Pack quantity: 1 pcs.

E33722-00 — 16.11.2012 —
