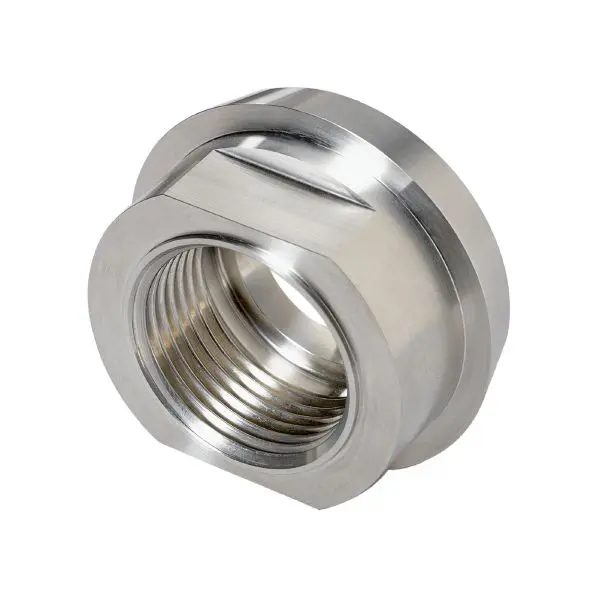

ifm Electronic E33701, Prozessadapter Tri-Clamp

Application

• Pressure rating [bar]: 16
• MAWP (for applications according to CRN) [bar]: 16

Tests / approvals

• Pressure Equipment Directive: A possible classification to PED depends on the application and has to be carried out by the user / operator.
• Safety instructions: The compatibility between medium and product material has to be checked in all applications.

Mechanical data

• Weight [g]: 101
• Materials (wetted parts): stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4
• Sensor connection: G 1 internal thread Aseptoflex Vario
• Process connection: Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)
• Sealing: metal to metal
• Hygienic equipment class to DIN 11866: H4

Remarks

• Pack quantity: 1 pcs.

E33701-00 — 16.11.2012 —
