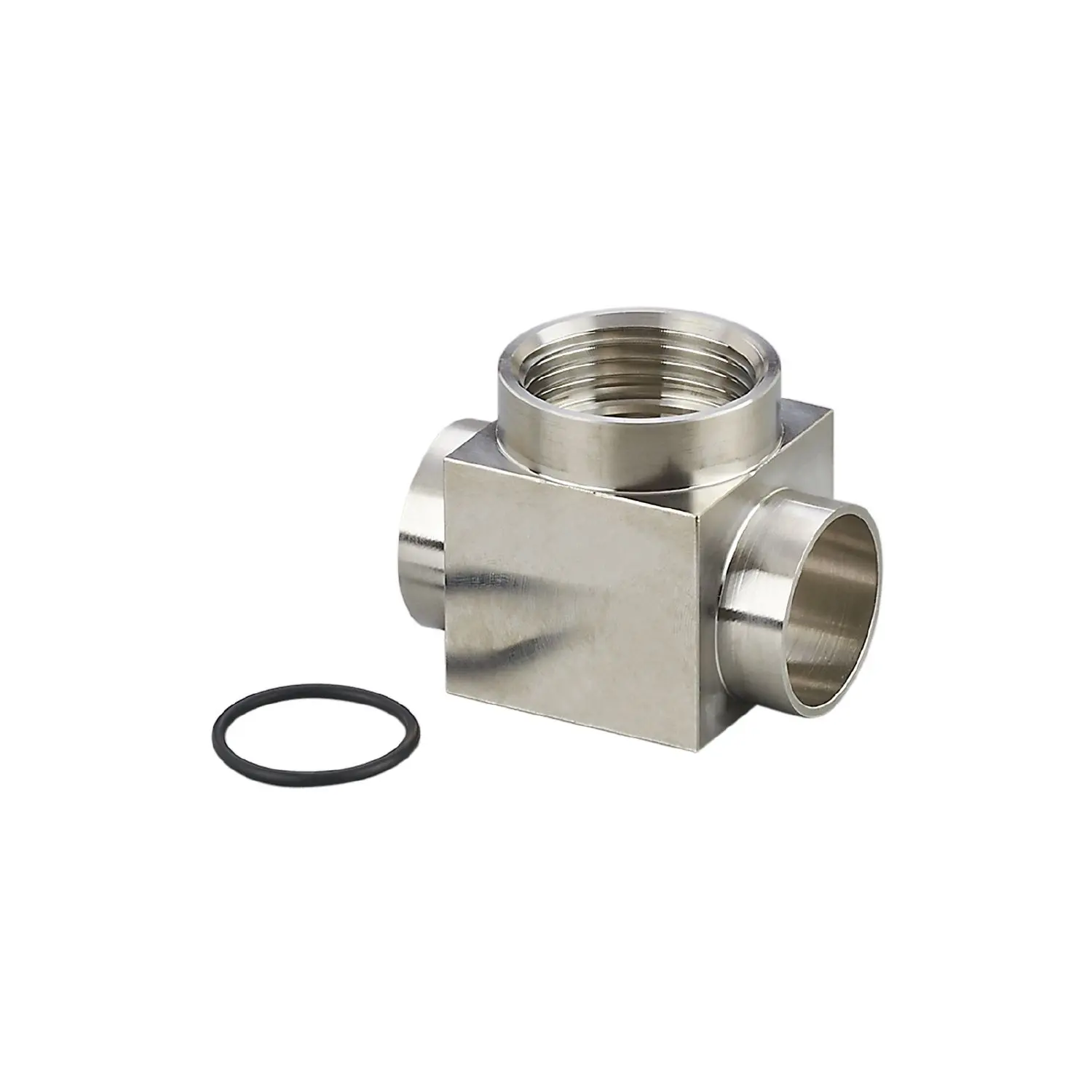

ifm Electronic E33250 T Stück

Application

• Pressure rating [bar]: 25
• Note on pressure rating: for the connection sensor - adapter

Tests / approvals

• Pressure Equipment Directive: A possible classification to PED depends on the application and has to be carried out by the user / operator.
• Safety instructions: The compatibility between medium and product material has to be checked in all applications.

Mechanical data

• Weight [g]: 305.5
• Materials (wetted parts): stainless steel (1.4404 / 316L) ; surface characteristics : Ra<0,8 / Rz 4
• Sensor connection: G 1 Aseptoflex Vario
• Process connection: welding adapter Ø 29 mm
• Sealing: Gasket

Accessories

• Items supplied: O-ring: 1 x 24 x 2, EPDM, FDA compliant, E30054
• Accessories (optional): O-ring: 1 x 24 x 2, FKM, FDA compliant, E30123

Remarks

• Pack quantity: 1 pcs.

E33250-00 — 10.12.2018 —
