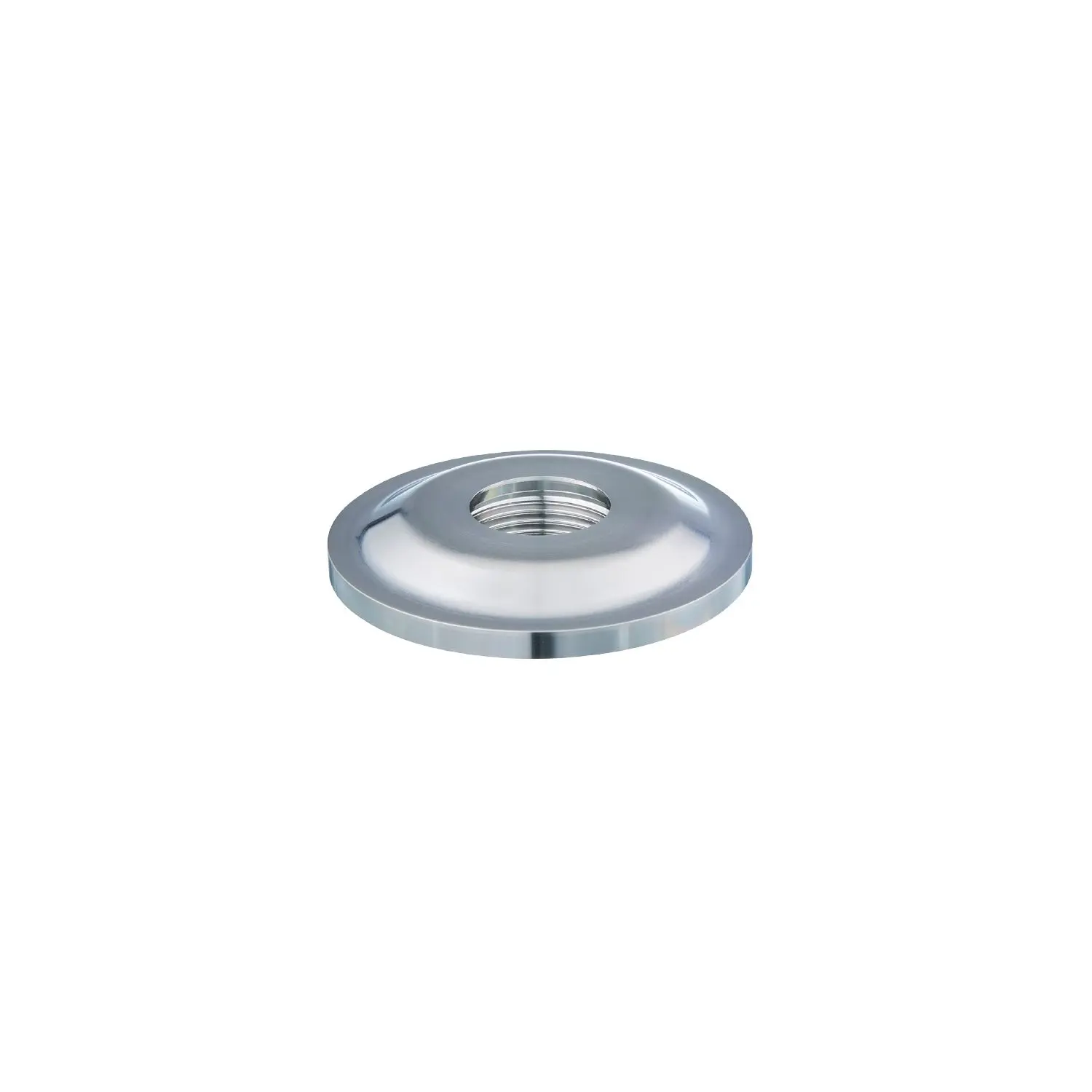

ifm Electronic E30529 Einschweißadapter für Prozesssensoren

Application

• Design: with leakage port
• Installation: for thick wall thicknesses and for unfavourable welding conditions; for tank bottom and wall
• Pressure rating [bar]: 16
• Note on pressure rating: for the connection sensor - adapter

Tests / approvals

• Pressure Equipment Directive: A possible classification to PED depends on the application and has to be carried out by the user / operator.
• Safety instructions: The compatibility between medium and product material has to be checked in all applications.

Mechanical data

• Weight [g]: 289.7
• Materials (wetted parts): stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / R
• Sensor connection: G 1 internal thread Aseptoflex Vario
• Process connection: welding adapter Ø 85 mm
• Sealing: Gasket

Accessories

• Items supplied: O-ring: 1 x 24 x 2, EPDM, E30054
• Accessories (optional): O-ring: 1 x 24 x 2, FKM, E30123

Remarks

• Pack quantity: 1 pcs.

E30529-00 — 16.03.2023 —
