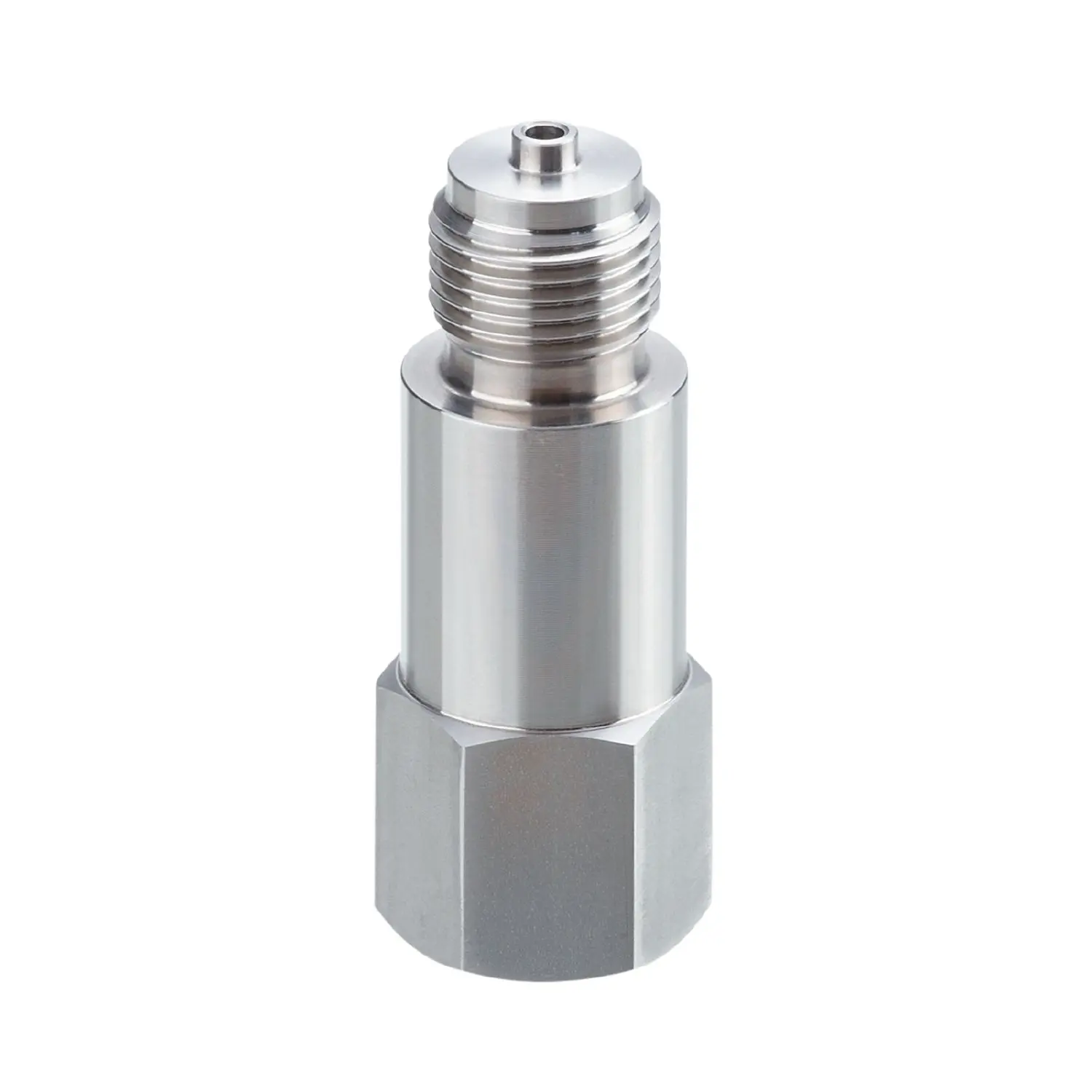

ifm Electronic E30507 Einschraubadapter für Prozesssensoren

Application

• Design: Zwischenstück DIN 16281 - 20 St
• Application: industrial application
• Installation: for mounting on an even surface
• Pressure rating [bar]: 400

Tests / approvals

• Pressure Equipment Directive: A possible classification to PED depends on the application and has to be carried out by the user / operator.
• Safety instructions: The compatibility between medium and product material has to be checked in all applications.

Mechanical data

• Weight [g]: 248
• Materials: stainless steel (1.4571/316Ti )
• Sensor connection: G 1/2 internal thread
• Process connection: threaded connection G 1/2 external thread

Remarks

• Pack quantity: 1 pcs.

E30507-00 — 23.09.2020 —
