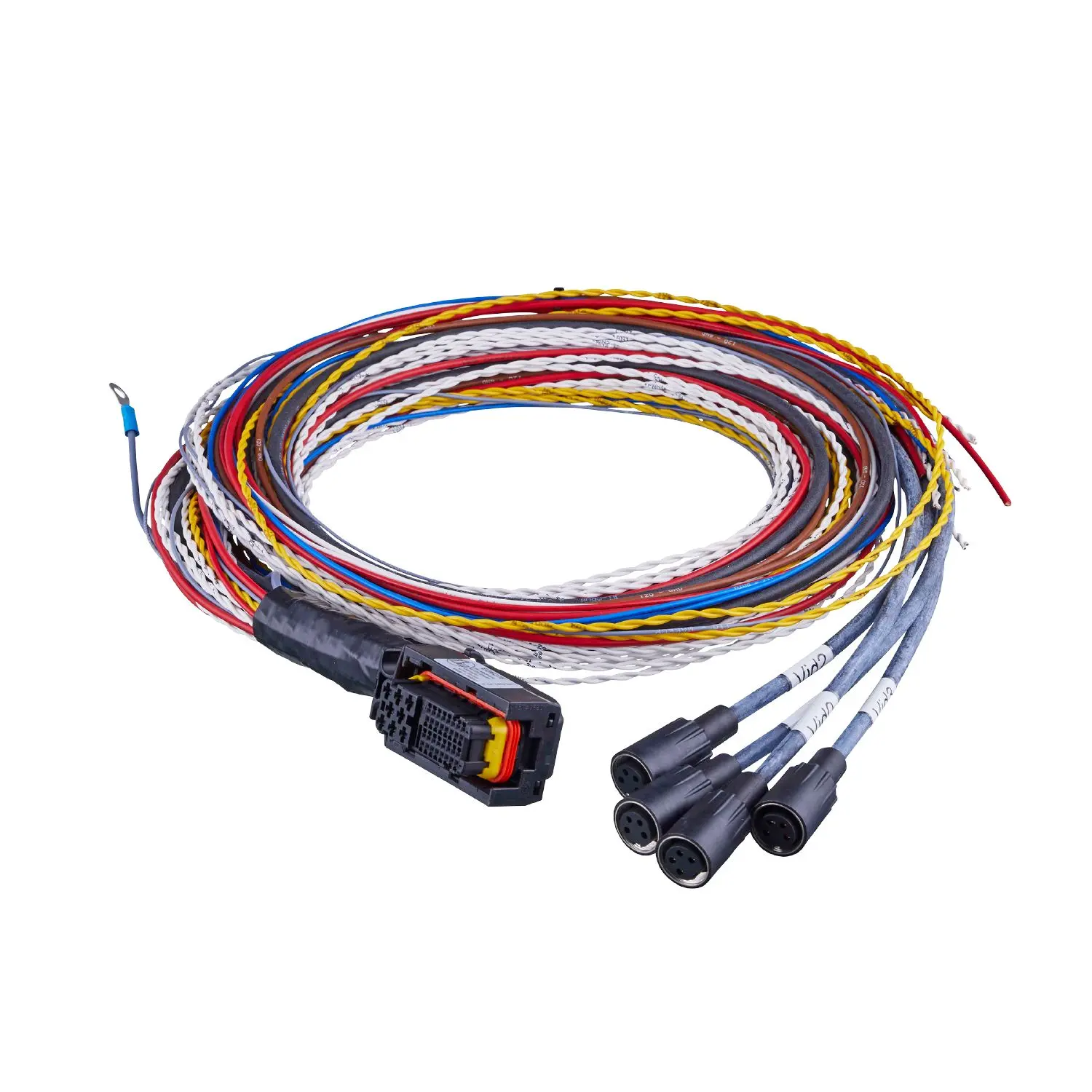

ifm Electronic E2M276 Anschlussleitung mit AMP Steckverbindung, für 4 analoge Kameras

Electrical data

• Operating voltage [V]: < 18 DC

Operating conditions

• Ambient temperature [°C]: -25...90
• Protection: IP 67; (M16 connector)

Mechanical data

• Weight [g]: 1091.3
• Moulded-body material: PA 6.6-GF30 / PBT-GF15
• Material nut: PBT-GF30

Remarks

• Pack quantity: 1 pcs.

Electrical connection - AMP connector

• : Connector: 1 x AMP-Junior Timer; Moulded body: PA 6.6-GF30 / PBT-GF15, black; Locking: PBT-GF30

Electrical connection

• : Cable: 2.5 m, PUR; FLRY-B; 8 x 0.125 mm², PVC + 4 x 0.34 mm², PVC + 20 x 0.5 mm², PVC + 5 x 1.0 mm², PVC + (provide screen with ring cable lug (M5) )

Electrical connection - socket video 0 ... video 3

• : Connector: 4 x M16, straight; coding: A

E2M276-00 — 21.07.2023 —
